Petersen 143-5 Series 5" Water Line Stub Plug
Petersen 143-5 Series 5" Water Line Stub Plug
SKU:HIG-4d48fe
Durable water line stub plug for high-pressure applications, easy installation with wing nut/hex nut, reliable sealing up to 8 psi.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Petersen 143-5 Series 5" Water Line Stub Plug
$19.99
Quantity: 1
Claim Your Seller Account
Petersen 143-5 Series 5" Water Line Stub Plug
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 143-5 Series 5" Water Line Stub Plug features a durable SBR/Natural rubber o-ring, making it suitable for all pipe types. Specifically designed for high-pressure applications like plugging water line stub-outs. Ranging from 0.39" to 5", this plug offers easy installation with a wing nut for smaller sizes and a hex nut for larger sizes. With a maximum allowable back pressure of 8 psi, this plug ensures secure sealing while maintaining reliability under pressure.

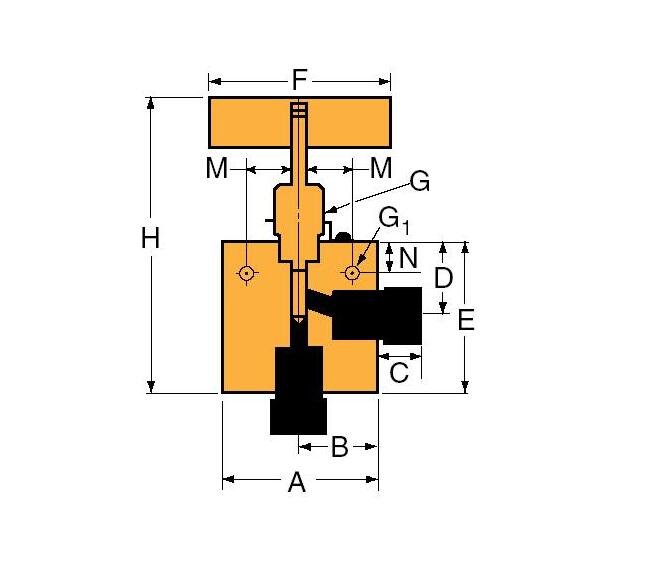

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.25 in | 31.75 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
QS 562
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.69 in | 42.88 mm
Specifications E Height
3.50 in | 88.90 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.36 in | 9.14 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.55 in | 166.37 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.359 in | 9.12 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 10342 bar
Specifications Rated Cv
2.80
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.81 in | 21.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R15QS4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
