The Petersen 145-8 Series 84 Inch Pipeline Joint Tester is an essential tool for testing joint integrity in large diameter pre-cast concrete pipes. Compliant with ASTM C1103 standards, this tester allows for quick and accurate testing with either air up to 15 psi or water up to 50 psi. Its lightweight aluminum design with independent, adjustable wheels facilitates easy assembly and movement in manholes. The quick-connect control panel simplifies installation and removal, ensuring efficient testing processes. Recommended for pipes 24" and larger, this tester is a reliable solution for ensuring pipeline integrity before backfilling.
Product Specifications

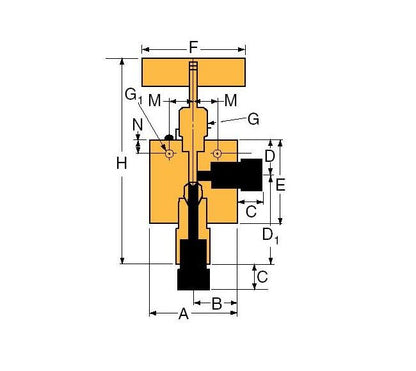

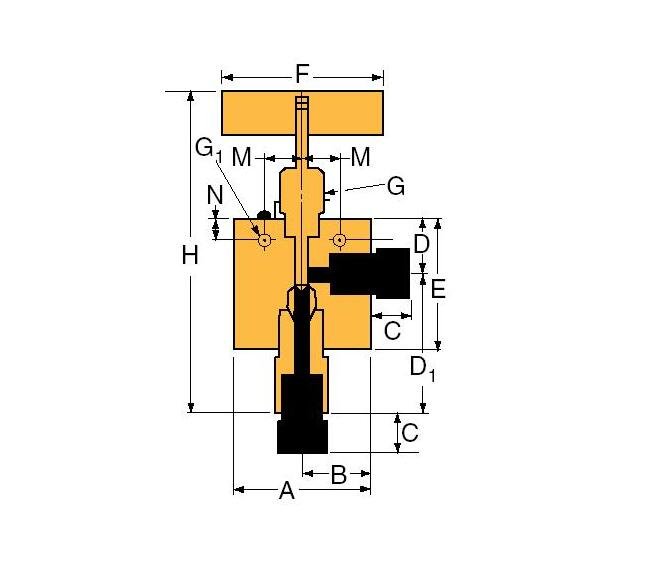

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.88 in | 47.75 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.25 in | 57.15 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.75 in | 146.05 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm

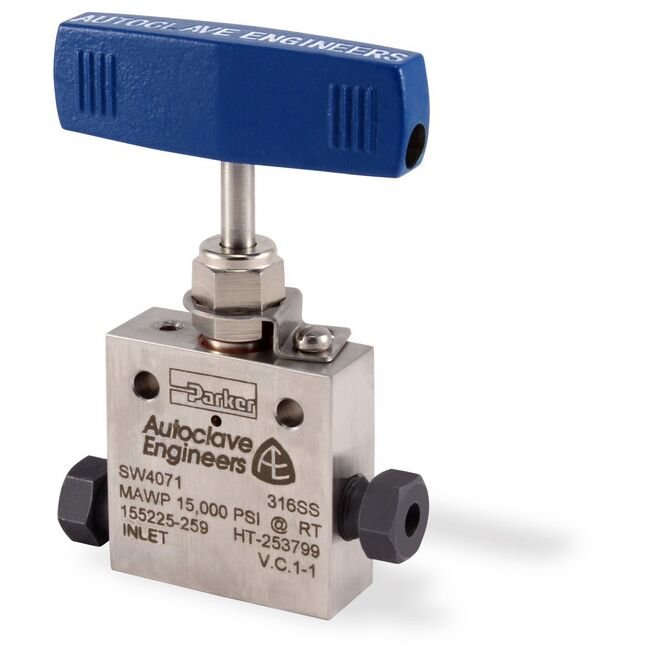

Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
