Petersen 145-8 Series 90" Pipeline Joint Tester
Petersen 145-8 Series 90" Pipeline Joint Tester
SKU:HIG-6ab3c1
Efficiently test joint integrity in large diameter pipes with the Petersen 145-8 Series 90" Pipeline Joint Tester. Compliant with ASTM C1103 standards.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Petersen 145-8 Series 90" Pipeline Joint Tester
$5,899.99
Quantity: 1
Claim Your Seller Account
Petersen 145-8 Series 90" Pipeline Joint Tester
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-8 Series 90" Pipeline Joint Tester is a reliable solution for testing joint integrity in large diameter pre-cast concrete pipes, meeting ASTM C1103 standards. With the capability to test up to 15 psi air or 50 psi water pressure, this tester ensures fast, safe, and accurate results. Its sleeveless, lightweight aluminum design allows for easy assembly in manholes, while the independent, adjustable wheels make it highly portable. The quick-connect control panel simplifies installation and removal, ensuring precise testing without interference with laser usage. Replacement end elements and optional control panel and wheel kit enhance versatility, making it ideal for pipes 24" and larger.
Product Specifications

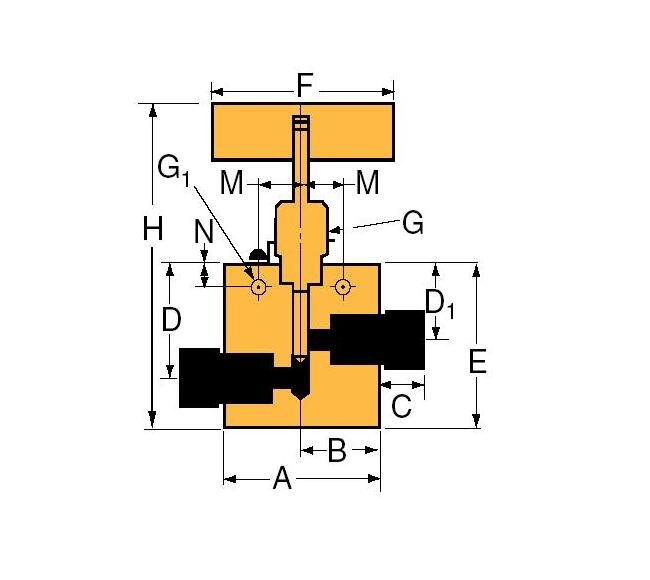

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW375
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.50 in | 114.30 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.95
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
