Petersen 145-9 Mechanical High Pressure Test Plug
Petersen 145-9 Mechanical High Pressure Test Plug
SKU:HIG-40e13c
Seal pipes securely with the Petersen 145-9 Mechanical High Pressure Test Plug. Lightweight aluminum, easy installation, and reliable performance up to 200 psig.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Petersen 145-9 Mechanical High Pressure Test Plug
$99.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Mechanical High Pressure Test Plug
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Series Mechanical High Pressure Test Plug is engineered for reliable sealing with options for solid rubber or inflatable seals. Designed for easy installation, this lightweight aluminum plug ensures a positive seal, capable of withstanding up to 200 psig. Ideal for force and water main, lift stations, and various industrial applications where precise isolation is essential. With replaceable seals and a robust construction, this mechanical plug guarantees safety and efficiency during testing and construction processes.

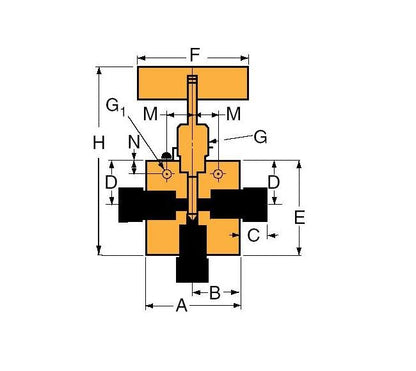

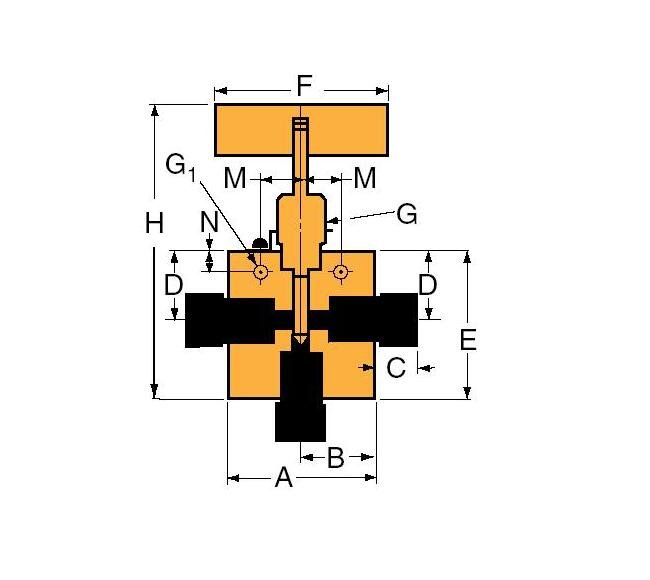

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.38 in | 60.45 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.00 in | 127.00 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.08
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
