Petersen 145-9 Mechanical High Pressure Test Plug
Petersen 145-9 Mechanical High Pressure Test Plug
SKU:HIG-21b5dc
High-performance mechanical test plug for 10.625 in pipes, offers solid seals, easy installation, and reliable hold against high pressure.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Petersen 145-9 Mechanical High Pressure Test Plug
$249.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Mechanical High Pressure Test Plug
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Series 10.625 Inch Mechanical High Pressure Test Plug is a reliable solution designed for high-pressure applications. This plug, available with solid rubber or inflatable seals, features easy installation, replaceable seals, and a lightweight aluminum construction. With a maximum head pressure of 100 psig, it ensures a positive seal against line pressure. Ideal for force and water main testing, lift stations, nuclear cooling lines, and more, this plug offers versatile usage for various projects where isolation is needed. Safety precautions include careful pressure estimation and mechanical blocking to prevent property damage or injury.
Product Specifications

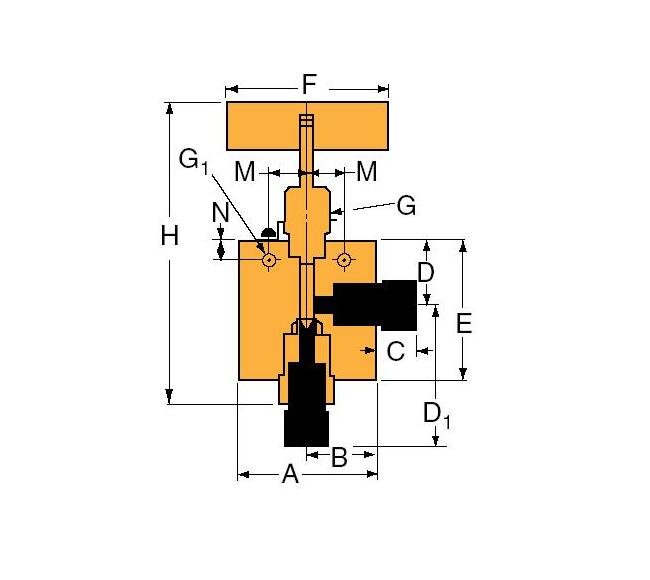

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
2.12 in | 53.85 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.28 in | 159.51 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.08
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
