Petersen 145-9 Mechanical High Pressure Test Plug
Petersen 145-9 Mechanical High Pressure Test Plug
SKU:HIG-715db0
Reliable Petersen 145-9 Mechanical High Pressure Test Plug for diverse industrial applications.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Petersen 145-9 Mechanical High Pressure Test Plug
$389.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Mechanical High Pressure Test Plug
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Mechanical High Pressure Test Plug is designed for easy installation and reliable performance in various applications. With a maximum pipe size of 12.625 inches and a maximum head pressure of 100 psig, this plug offers a positive seal against line pressure. It is ideal for force mains, water mains, nuclear cooling lines, fire protection systems, and other projects requiring isolation for testing and construction. The plug can be customized for different pressure requirements and fits various pipe shapes, making it a versatile solution for industrial and municipal needs.

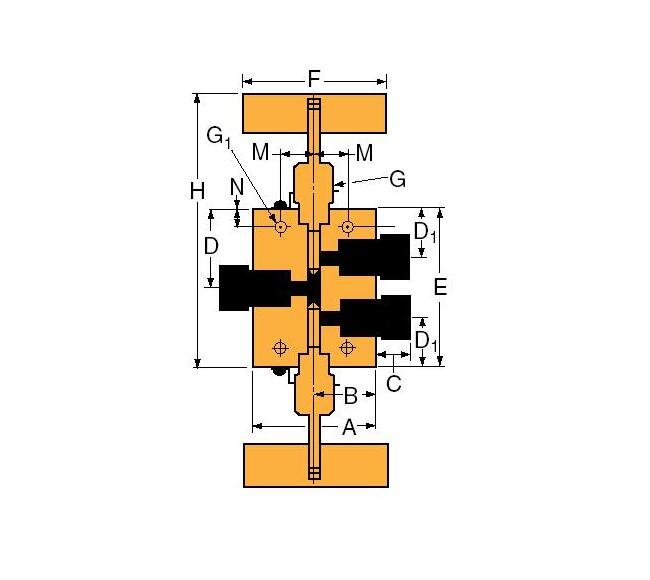

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.72 in | 43.69 mm
Specifications E Height
3.44 in | 87.38 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.07 in | 154.18 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.08
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
