Petersen 145-9 Mechanical High Pressure Test Plug
Petersen 145-9 Mechanical High Pressure Test Plug
SKU:HIG-346ed6
The Petersen 145-9 Mechanical High Pressure Test Plug - Reliable, Easy-to-Install Solution for Critical Pipeline Isolation Needs
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Petersen 145-9 Mechanical High Pressure Test Plug
$499.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Mechanical High Pressure Test Plug
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Series Mechanical High Pressure Test Plug is a robust solution for isolating pipelines in demanding applications. Available with solid rubber or inflatable seals, this plug ensures easy installation and a positive seal against line pressure. With a maximum pipe size of 21.875 inches and a maximum head pressure of 100 psig, it is ideal for force mains, water main testing, lift stations, nuclear cooling lines, and other critical projects where isolation is imperative. Manufactured with lightweight aluminum and designed for versatility, this plug meets stringent industry standards for reliability and safety.
Product Specifications

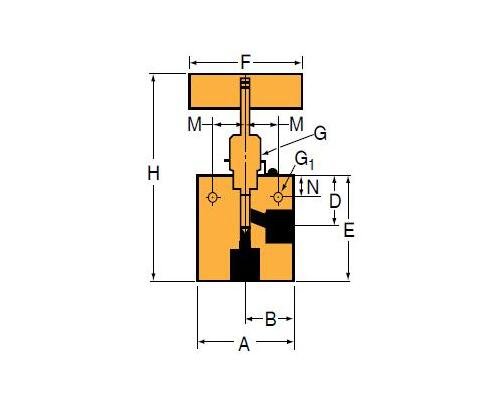

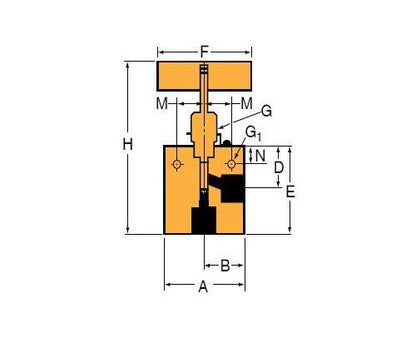

Specifications A Width
1.5 in | 38.10 mm
Specifications Block Thickness
0.63 in | 15.88 mm
Specifications B Length
0.75 in | 19.05 mm
Specifications Connection Type
Pipe
Specifications D Height
0.56 in | 14.22 mm
Specifications E Height
1.38 in | 34.93 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.06 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.22 mm
Specifications H Height
2.66 in | 67.56 mm
Specifications M Length
0.45 in | 11.43 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Pipe Size
1/8 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.11
Specifications Stem Type
REG
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
