Petersen 145-9 Mechanical High Pressure Test Plug - 6 Inch
Petersen 145-9 Mechanical High Pressure Test Plug - 6 Inch
SKU:HIG-6e4f77
Premium 6" Mechanical High Pressure Test Plug for reliable pipe testing, featuring solid/inflatable seals & durable aluminum construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen 145-9 Mechanical High Pressure Test Plug - 6 Inch
$89.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Mechanical High Pressure Test Plug - 6 Inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Series 6 Inch Mechanical High Pressure Test Plug is a reliable solution for testing pipelines in force mains, water mains, lift stations, and various industrial applications. With solid rubber or inflatable seals, lightweight aluminum construction, and the ability to withstand up to 100 psig head pressure, this plug ensures a positive seal against line pressures. Ideal for pressure testing and isolating pipelines during construction, it offers easy installation, replaceable seals, and versatility to accommodate different pressure requirements.

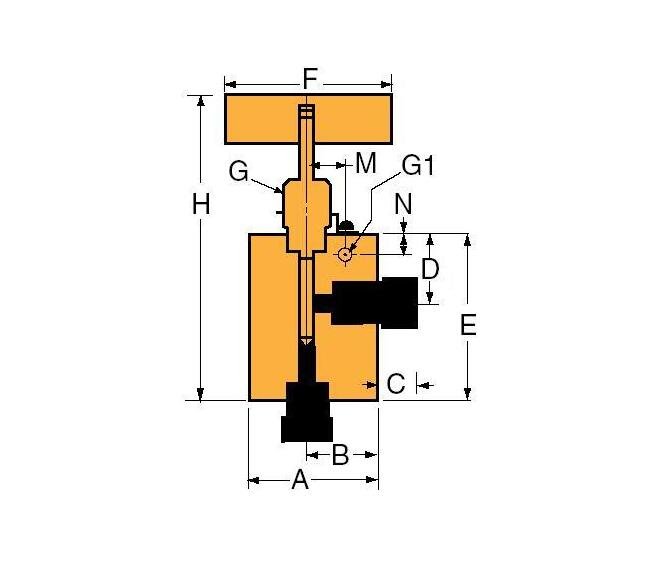

Product Specifications
Specifications A Width
2.25 in | 57.15 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D Height
1.44 in | 36.58 mm
Specifications E Height
3.00 in | 76.20 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
6.05 in | 135.13 mm
Specifications M Length
0.94 in | 23.88 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.10 in | 28.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
