Petersen 145-9 Mechanical High Pressure Test Plug - 9.125 Inch
Petersen 145-9 Mechanical High Pressure Test Plug - 9.125 Inch
SKU:HIG-9f51c2
Enhance testing safety with the Petersen 145-9 Mechanical High Pressure Test Plug - ideal for a variety of applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Petersen 145-9 Mechanical High Pressure Test Plug - 9.125 Inch
$69.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Mechanical High Pressure Test Plug - 9.125 Inch
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Mechanical High Pressure Test Plug is designed for maximum safety and efficiency in pressure testing applications. With options for solid rubber or inflatable seals, this plug ensures easy installation and reliable sealing against line pressure. Crafted from lightweight aluminum, it features replaceable seals for cost-effective maintenance. Suitable for a wide range of applications including force and water mains, lift stations, and fire protection lines, this plug guarantees a secure isolation for testing and construction needs. Compliant with industry standards and built to withstand high pressures, the Petersen 145-9 plug is a top choice for institutional and government procurement.

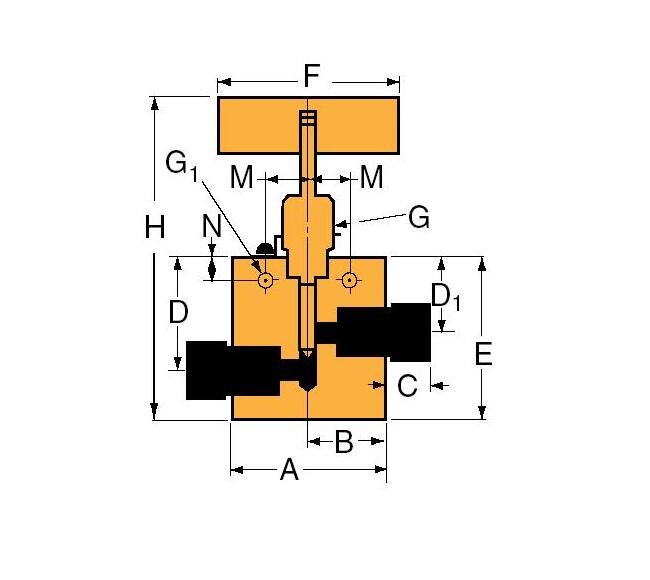

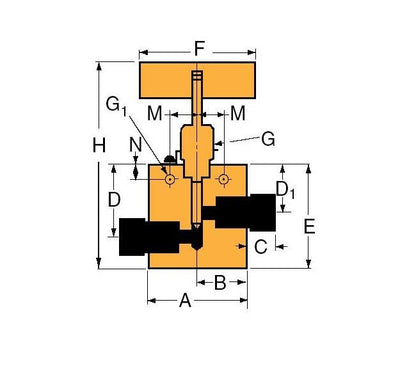

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D1 Height
1.44 in | 36.58 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
2.25 in | 57.15 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
5.32 in | 135.13 mm
Specifications M Length
1.12 in | 28.45 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.18 in | 30.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
