Petersen 145-9 Series High Pressure Test Plug
Petersen 145-9 Series High Pressure Test Plug
SKU:HIG-05f5a7
High-pressure test plug for 6.75in pipes, with durable seals, aluminum build, and versatile applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Petersen 145-9 Series High Pressure Test Plug
$149.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Series High Pressure Test Plug
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Series Mechanical High Pressure Test Plug is designed for maximum pipe sizes of 6.75 inches, offering reliable sealing against line pressures up to 100 psig. This plug features a lightweight aluminum construction, solid rubber seals or inflatable options, and a 1/2 F by-pass port in National Pipe Thread for versatile applications. Ideal for force and water mains, lift stations, fire protection lines, and more, this plug ensures a positive seal for testing and construction needs. Adhering to industry standards, it's customizable for various pressure requirements and is an essential tool for isolation in critical projects.
Product Specifications

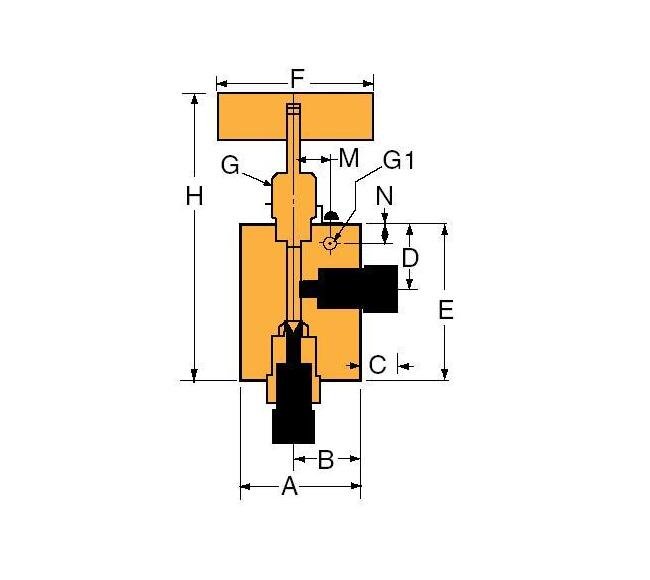

Specifications A Width
2.25 in | 57.15 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D1 Height
3.05 in | 77.47 mm
Specifications D Height
1.44 in | 36.58 mm
Specifications E Height
3.00 in | 76.20 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.57 in | 192.30 mm
Specifications M Length
0.94 in | 23.88 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
5/16 in | 7.93 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.18 in | 30.0 mm
Specifications Valve Pattern
2-Way Angle / Replacement Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
