The Petersen 145-9 Series Mechanical High Pressure Test Plug is designed for maximum safety and efficiency in testing applications. This plug features solid rubber seals or inflatable seals, ensuring easy installation and a positive seal against line pressure. With a maximum pipe size of 10.125 inches and the ability to withstand up to 100 psig head pressure, it is suitable for force mains, lift stations, nuclear cooling lines, fire protection systems, and more. The lightweight aluminum construction and replaceable seals offer durability and versatility for various testing and construction projects.
Product Specifications

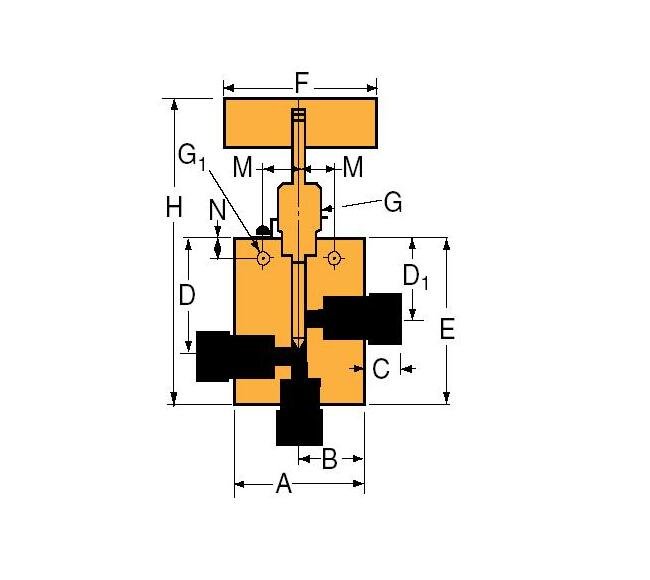

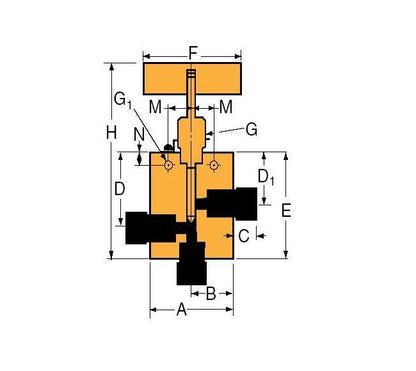

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D1 Height
1.44 in | 36.58 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.25 in | 82.55 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
6.31 in | 160.27 mm
Specifications M Length
1.12 in | 28.45 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
5/16 in | 7.93 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.18 in | 30.0 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
