Petersen 145-9 Series Mechanical High Pressure Test Plug
Petersen 145-9 Series Mechanical High Pressure Test Plug
SKU:HIG-101694
Versatile and reliable 3.75 Inch Mechanical High Pressure Test Plug by Petersen for various applications. Lightweight aluminum with replaceable seals.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Petersen 145-9 Series Mechanical High Pressure Test Plug
$149.99
Quantity: 1
Claim Your Seller Account
Petersen 145-9 Series Mechanical High Pressure Test Plug
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145-9 Series 3.75 Inch Mechanical High Pressure Test Plug is a versatile solution for a wide range of applications including force and water mains, lift stations, nuclear cooling lines, and fire protection systems. With a maximum head pressure of 200 psig, this lightweight aluminum plug, available with solid rubber or inflatable seals, ensures a positive seal against line pressure. Designed for easy installation and seal replacement, these plugs are suitable for testing and construction projects where isolation is crucial.

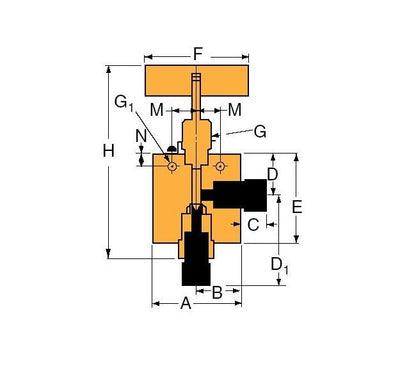

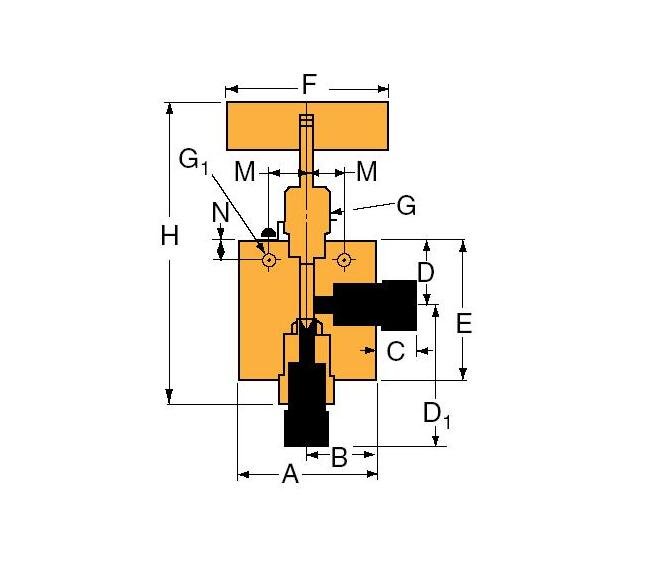

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
2.36 in | 59.94 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.52 in | 165.60 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.09
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
