Petersen 145-9 Series Mechanical High Pressure Test Plug

Petersen 145-9 Series Mechanical High Pressure Test Plug

HIG-0e7cf6

Versatile Petersen 145-9 Mechanical High Pressure Test Plug for reliable sealing of pipe systems. Lightweight aluminum construction with replaceable seals.

$149.99
$149.99
Sale

Initiate Order

Petersen 145-9 Series Mechanical High Pressure Test Plug

Petersen 145-9 Series Mechanical High Pressure Test Plug

$149.99

Quantity: 1

Claim Your Seller Account

Petersen 145-9 Series Mechanical High Pressure Test Plug

Petersen 145-9 Series Mechanical High Pressure Test Plug

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen 145-9 Series Mechanical High Pressure Test Plug offers versatile sealing solutions with options for solid rubber or inflatable seals. Constructed from lightweight aluminum, it ensures easy installation and features replaceable seals for cost-effective maintenance. With a maximum pipe size of 8.125 inches and the ability to withstand up to 100 psig, this plug provides a dependable seal against line pressure. Ideal for force and water main, lift stations, fire protection lines, and various other applications requiring precise isolation for testing and construction.

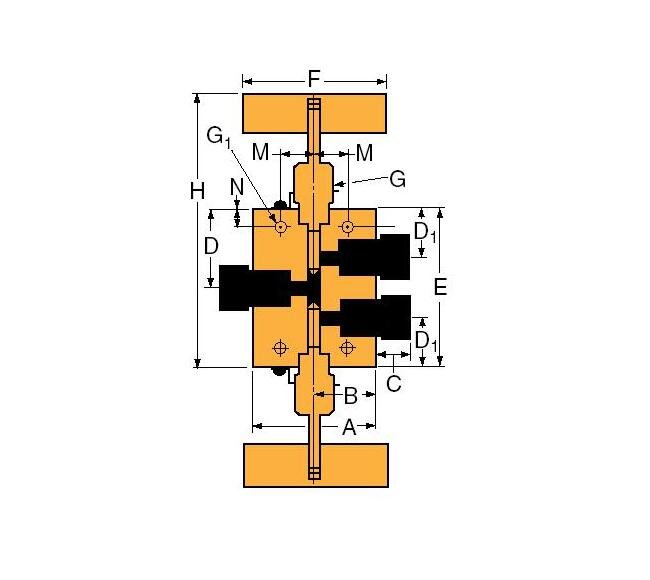

Product Specifications

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.88 in | 47.75 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.37 in | 161.80 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.09
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
