Petersen 145-9 Series Mechanical High Pressure Test Plug

Petersen 145-9 Series Mechanical High Pressure Test Plug

HIG-afef5c

Versatile Petersen 145-9 Series High Pressure Test Plug for reliable line pressure isolation and maintenance. Available in inflatable or rubber seals with lightweight aluminum design.

$399.99
$399.99
Sale

Initiate Order

Petersen 145-9 Series Mechanical High Pressure Test Plug

Petersen 145-9 Series Mechanical High Pressure Test Plug

$399.99

Quantity: 1

Claim Your Seller Account

Petersen 145-9 Series Mechanical High Pressure Test Plug

Petersen 145-9 Series Mechanical High Pressure Test Plug

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen 145-9 Series Mechanical High Pressure Test Plug is a versatile solution available with both solid rubber and inflatable seals. With a maximum pipe size of 32.875 inches and a sturdy aluminum construction, this plug ensures easy installation and replaceable seals for cost-effective maintenance. Designed to hold against line pressure, these plugs are ideal for force and water main testing, nuclear cooling lines, fire protection systems, and more. Adhering to stringent quality standards, Petersen delivers reliable isolation for a wide range of applications.

Product Specifications

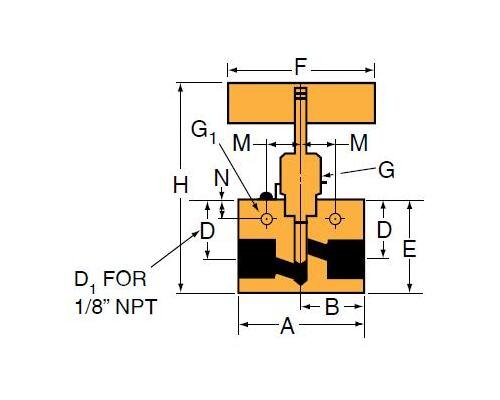

Specifications A Width
3.50 in | 88.90 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
1.75 in | 44.45 mm
Specifications Connection Type
Pipe
Specifications D Height
2.63 in | 66.80 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.00 in | 177.80 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Pipe Size
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
2.50
Specifications Stem Type
REG
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add “R” to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).†Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
