Petersen 145 psi Pressure Inflation Controller
Petersen 145 psi Pressure Inflation Controller
SKU:HIG-3376d7
Precisely control 145 psi inflation with Petersen's high-quality dual deadman controller, ideal for heavy-duty applications.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Petersen 145 psi Pressure Inflation Controller
$229.99
Quantity: 1
Claim Your Seller Account
Petersen 145 psi Pressure Inflation Controller
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 145 Pound per Square Inch (psi) Pressure Inflation Controller is a high-quality dual deadman controller equipped with intuitive joysticks for precise pressure management. Designed for heavy-duty applications, this controller features a 1/4 inch safety coupler and nipple connections, ensuring secure and efficient inflation operations. Ideal for use with the 161-5 Series High Pressure Heavy Duty Bags, this controller is a reliable tool for maintaining consistent pressure at 145 psi. Trust Petersen's expertise for exceptional performance and durability.

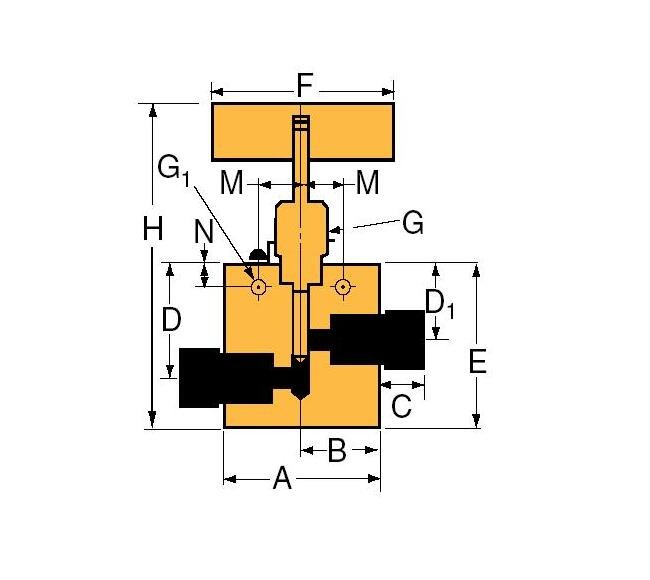

Product Specifications
Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.75 in | 44.45 mm
Specifications D Height
2.38 in | 60.45 mm
Specifications E Height
2.88 in | 73.15 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.95 in | 151.37 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
