Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug
Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug
SKU:HIG-611a4f
Reliable and customizable silicone test plug for secure pipeline testing up to 250 psig.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug
$129.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug offers exceptional pipeline testing reliability. With a minimum pipe inside diameter of 9.95 inches and rated pressure of 10 psig, this plug ensures secure testing up to 250 psig without tube wall damage. Featuring a Nitrile seal for hydrocarbon resistance and customizable configurations, this plug is ideal for institutional applications requiring precision and durability.

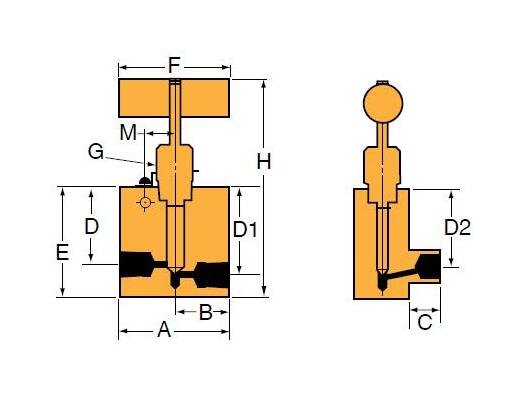

Product Specifications
Specifications A Width
1.5 in | 38.10 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
0.75 in | 19.05 mm
Specifications Connection Type
Tube
Specifications C Length
0.63 in | 15.88 mm
Specifications D1 Height
1.06 in | 26.92 mm
Specifications D2 Height
0.88 in | 22.35 mm
Specifications D Height
0.81 in | 20.57 mm
Specifications E Height
1.38 in | 34.93 mm
Specifications F Length
1.5 in | 38.1 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
3.49 in | 88.65 mm
Specifications M Length
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Pipetube
1/8 in | 3.18 mm
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
3-Way/2 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: RBTV4F2L1)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Standard Autoclave valves with Teflon packing may be operated to 450°F (232°C). R regulating stem Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F(343°C). For additional valve options, contact your Sales Representative.
