Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-261a30
Reliable Petersen 146-9 Series Test Plug with By-Pass for secure pipeline testing up to 300 psig with Nitrile seals and custom configurations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is designed for simple and reliable testing of pipelines up to 300 psig. Featuring Nitrile seals for hydrocarbon resistance and plated carbon steel construction, this test plug ensures secure sealing without tube wall damage. Custom configurations offer various seal material options and additional features, making it adaptable to diverse requirements.
Product Specifications

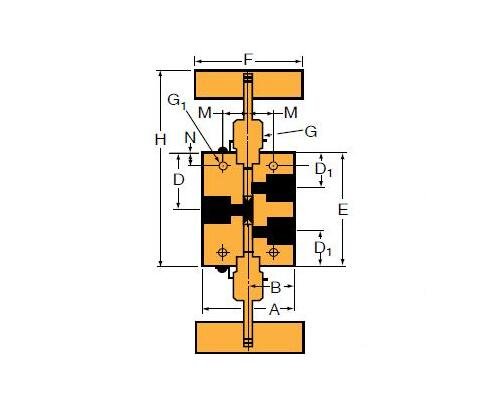

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
Pipe
Specifications D1 Height
1.19 in | 30.18 mm
Specifications D Height
1.69 in | 42.88 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.75 in | 146.05 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.203 in | 5.16 mm
Specifications Pipe Size
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.63
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way/2-Stem Manifold
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
