Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 10.45in Minimum Pipe ID
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 10.45in Minimum Pipe ID
SKU:HIG-470387
Reliable testing for pipelines with Petersen 146-9 Series Bolt Type Test Plug - Nitrile Seal & Customizable Configurations
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 10.45in Minimum Pipe ID
$249.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 10.45in Minimum Pipe ID
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is designed for reliable and efficient testing of pipelines. Featuring a Nitrile seal for hydrocarbon resistance, this plug ensures secure testing up to 10 psig without damaging the tube walls. With customizable configurations and various seal material options available, this plug offers versatility for different size, pressure, temperature, and chemical requirements. Ensure pipeline safety with this mechanically blocked plug to avoid property damage or injury.

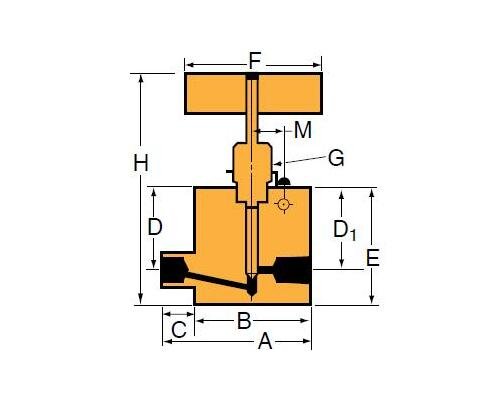

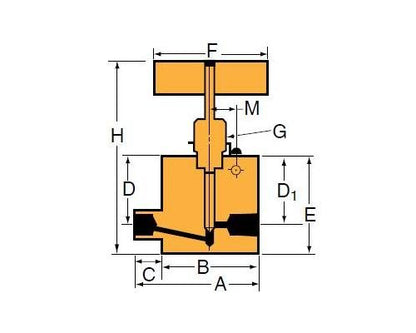

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
Pipe
Specifications C Length
0.69 in | 17.53 mm
Specifications D1 Height
0.82 in | 20.83 mm
Specifications D Height
0.82 in | 20.83 mm
Specifications E Height
1.28 in | 32.51 mm
Specifications F Length
1.5 in | 38.1 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.61 in | 15.49 mm
Specifications H Height
3.41 in | 86.61 mm
Specifications M Length
0.56 in | 14.22 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Pipetube
1/4 in | 6.35 mm
Specifications Stem Type
VEE
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: RBTV4F2L1)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Standard Autoclave valves with Teflon packing may be operated to 450°F (232°C). R regulating stem Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F(343°C). For additional valve options, contact your Sales Representative.
