Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-b4d84b
Ensure pipeline integrity with the Petersen 146-9 Series Test Plug. Reliable, versatile, and compliant plug for 250 psig testing.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$59.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines with ease. Featuring Nitrile seals for hydrocarbon resistance, this plug is designed for pipe diameters as small as 0.83 inches, rated up to 250 psig. Its innovative design prevents tube wall damage, ensuring a secure fit without compromising safety. Customizable with various seal materials, this test plug is versatile for different pressure, temperature, and chemical requirements, making it a valuable asset for institutional and government procurement needs.
Product Specifications

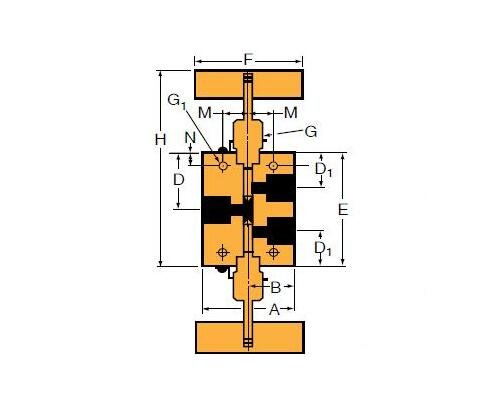

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
Pipe
Specifications D1 Height
1.75 in | 44.45 mm
Specifications D Height
2.56 in | 65.07 mm
Specifications E Height
5.12 in | 130.05 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
8.05 in | 204.4 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.312 in | 7.92 mm
Specifications Pipe Size
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
1.30
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way/2-Stem Manifold
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
