Petersen 146-9 Series Bolt Type Silicone Test Plug with By-Pass
Petersen 146-9 Series Bolt Type Silicone Test Plug with By-Pass
SKU:HIG-056330
Reliable testing plug with Nitrile seals, ideal for pipe testing up to 250 psig. Customizable configurations available.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Petersen 146-9 Series Bolt Type Silicone Test Plug with By-Pass
$49.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Bolt Type Silicone Test Plug with By-Pass
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass is designed for simple, reliable testing of pipelines. Featuring Nitrile seals for hydrocarbon resistance and plated carbon steel construction, this plug offers a secure fit with a minimum pipe inside diameter of 1.63 inches. With customizable configurations and various seal material options, this plug ensures effective testing without damaging the tube walls. Maintain safety and efficiency in testing procedures with this high-quality, versatile plug from Petersen®.
Product Specifications

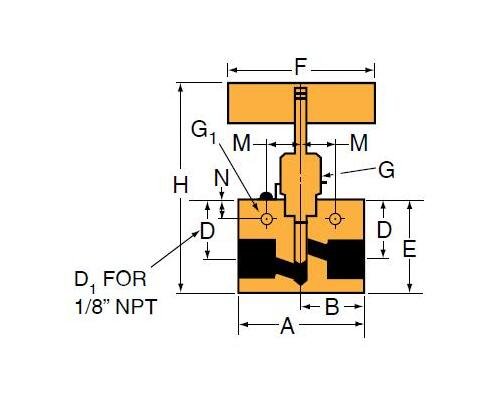

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
Pipe
Specifications D Height
1.41 in | 35.81 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.63 in | 117.60 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.203 in | 5.16 mm
Specifications Pipe Size
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.63
Specifications Stem Type
VEE
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
