Petersen 146-9 Series Medium Pressure Silicone Test Plug
Petersen 146-9 Series Medium Pressure Silicone Test Plug
SKU:HIG-493baa
Reliable testing of pipelines with Petersen's medium pressure silicone test plug. Customizable for various requirements.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
Petersen 146-9 Series Medium Pressure Silicone Test Plug
$75.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Medium Pressure Silicone Test Plug
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass is designed for reliable and easy testing of pipelines. With a minimum pipe inside diameter of 2.31 inches and a rated pressure of 100 psig, these plugs are suitable for various applications. The Nitrile seals ensure hydrocarbon resistance, and the plugs are crafted from plated carbon steel for durability. Custom configurations are available to meet specific size, pressure, and material requirements, making these plugs versatile for different needs.

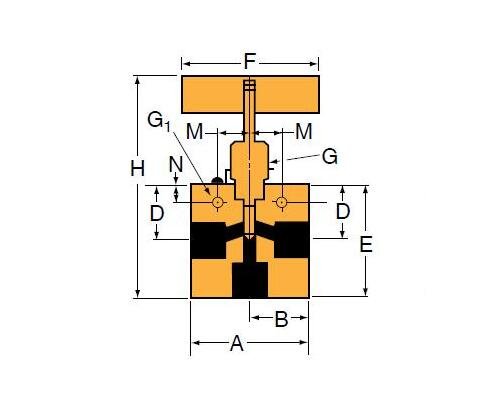

Product Specifications
Specifications A Width
3.50 in | 88.90 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
1.75 in | 44.45 mm
Specifications Connection Type
Pipe
Specifications D Height
2.65 in | 67.31 mm
Specifications E Height
4.25 in | 107.95 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.50 in | 190.50 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Pipe Size
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
2.50
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
