Petersen 146-9 Series Medium Pressure Silicone Test Plug
Petersen 146-9 Series Medium Pressure Silicone Test Plug
SKU:HIG-517af0
Perform pipeline testing with precision using the Petersen 146-9 Bolt Type Silicone Test Plug. Reliable, customizable, and hydrocarbon-resistant for up to 250 psig.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Petersen 146-9 Series Medium Pressure Silicone Test Plug
$45.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Medium Pressure Silicone Test Plug
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Silicone Test Plug with By-Pass is designed for reliable testing of pipelines up to 250 psig without causing tube wall damage. Featuring a Nitrile seal for hydrocarbon resistance, this plug offers a simple installation process and is customizable with various seal materials for specific requirements. With options for by-pass, valves, and remote placement systems, it ensures secure sealing and easy testing procedures for institutional and commercial applications.
Product Specifications

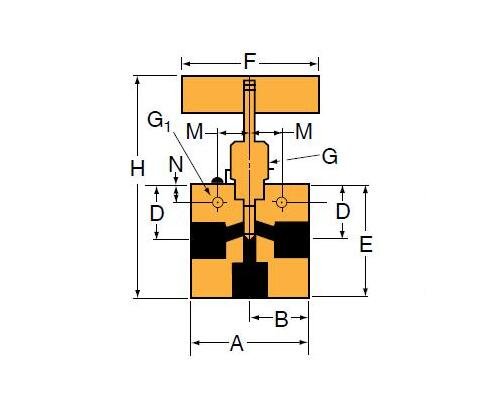

Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
Pipe
Specifications D Height
3.31 in | 84.07 mm
Specifications E Height
5.12 in | 130.05 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
9.09 in | 230.89 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Pipe Size
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
4.40
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
