Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-07ead9
Reliable medium pressure test plug with by-pass for pipelines, hydrocarbon-resistant nitrile seal, 250 psig rated pressure.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
$59.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers reliable testing for pipelines with a minimum inside diameter of 0.3 inches. Featuring a nitrile seal for hydrocarbon resistance and plated carbon steel construction, this plug is designed for testing pipe and tubing up to 250 psig without causing tube wall damage. Custom configurations are available with various seal materials to meet specific requirements, making this plug versatile and efficient for institutional and government procurement needs.
Product Specifications

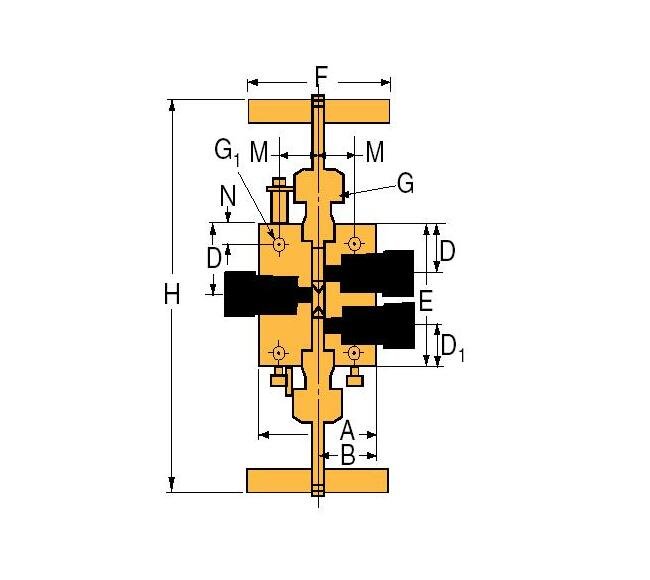

Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W062
Specifications C Length
0.45 in | 11.43 mm
Specifications D1 Height
0.56 in | 14.30 mm
Specifications D Height
0.81 in | 20.65 mm
Specifications E Height
1.63 in | 41.28 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
4.11 in | 104.44 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1/16 in | 1.57 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.05
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
