Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-d0b27e
Reliable Petersen 146-9 Series Test Plug with By-Pass for pipeline testing. Rated for 250 psig, Nitrile seals for hydrocarbon resistance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is engineered for precise testing of pipelines with a minimum inside diameter of 0.83 inches. With a rated pressure of 250 psig (17 bar) and Nitrile seals for hydrocarbon resistance, this plug ensures reliable testing without damaging the tube walls. It offers versatility with custom configurations, various seal materials, and options for by-pass, valves, and subsea installations. Safety is paramount with mechanical plug warnings and compliance with stringent industry standards.
Product Specifications

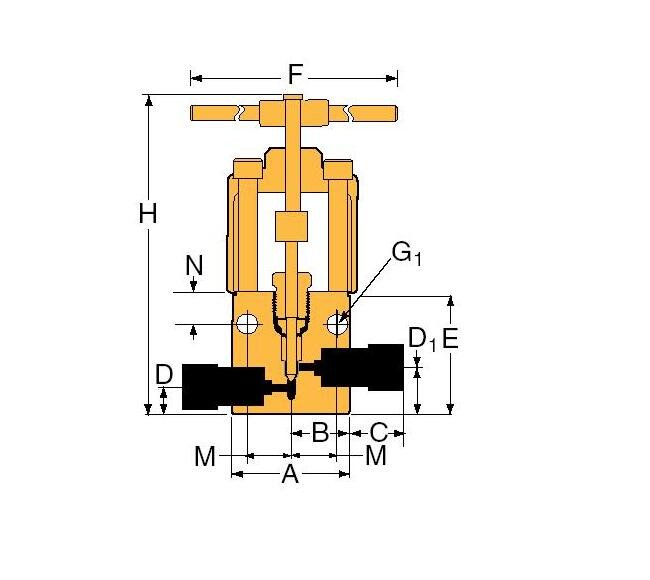

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D1 Height
1.50 in | 38.10 mm
Specifications D Height
0.75 in | 19.05 mm
Specifications E Height
3.50 in | 88.90 mm
Specifications F Length
8.00 in | 203.20 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
9.38 in | 238.25 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
2.41
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
