Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-e48c36
Reliable pipeline testing up to 250 psig with Nitrile seal for hydrocarbon resistance. Customizable options available.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
$179.99
Quantity: 1
Claim Your Seller Account
Petersen 146-9 Series Medium Pressure Test Plug with By-Pass
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is designed for reliable testing of pipelines up to 250 psig without causing tube wall damage. Featuring a Nitrile seal for hydrocarbon resistance and easy installation, this plug ensures secure testing operations. Customizable with various seal materials and configurations, it meets rigorous industry standards for durability and performance.
Product Specifications

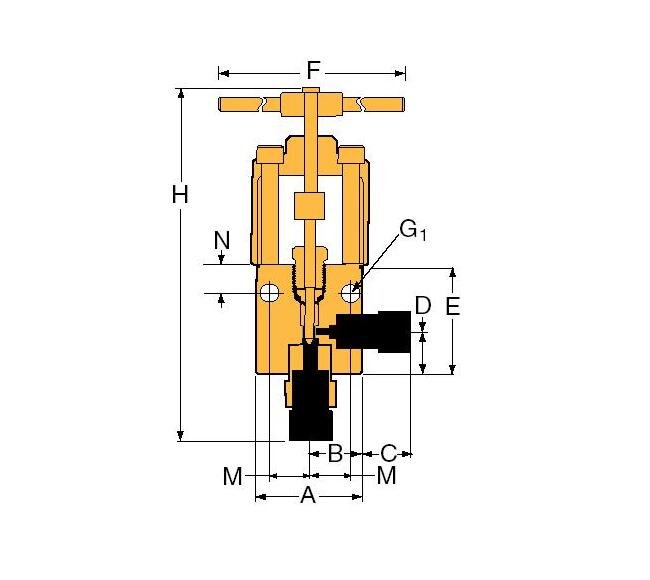

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F562C
Specifications C Length
0.56 in | 14.27 mm
Specifications D Height
1.38 in | 35.05 mm
Specifications E Height
3.38 in | 85.73 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
12.12 in | 307.85 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
1.06 in | 26.97 mm
Specifications Orifice Diameter
0.188 in | 4.78 mm
Specifications Outside Diameter Tube
9/16 in | 14.27 mm
Specifications Pressure Rating At Room Temperature
50000 psi | 3447 bar
Specifications Rated Cv
0.66
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
