Petersen 148-0 Series 4" EZ-Swet Mechanical Line Stopper Plug
Petersen 148-0 Series 4" EZ-Swet Mechanical Line Stopper Plug
SKU:HIG-0c8bfe
Repair pipelines without draining water! Petersen 148-0 Series 4" EZ-Swet Mechanical Line Stopper Plug - control water flow easily and efficiently.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen 148-0 Series 4" EZ-Swet Mechanical Line Stopper Plug
$89.99
Quantity: 1
Claim Your Seller Account
Petersen 148-0 Series 4" EZ-Swet Mechanical Line Stopper Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 148-0 Series 4 inch EZ-Swet Mechanical Line Stopper Plug is a versatile and durable solution for repairing pipelines without the need to drain the entire water system. Featuring a 1/2" cavity for water or air drainage during repairs, this plug is made from professional-grade materials and includes a hose connection for efficient water disposal. With a molded silicone/EPDM composite rubber seal, it provides immediate water system control, allowing quick pipe repairs without waiting for complete drainage. Not just for draining water, it also supports up to 60 psig water pressure for pressure testing. Cleaner and more controllable, this plug ensures faster and cost-effective repairs in various applications.

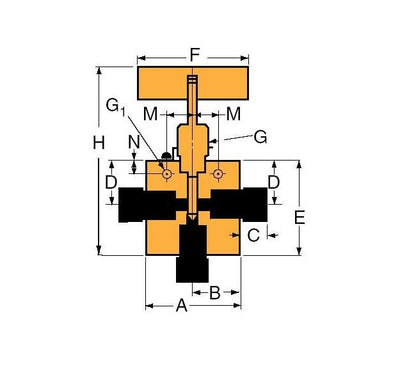

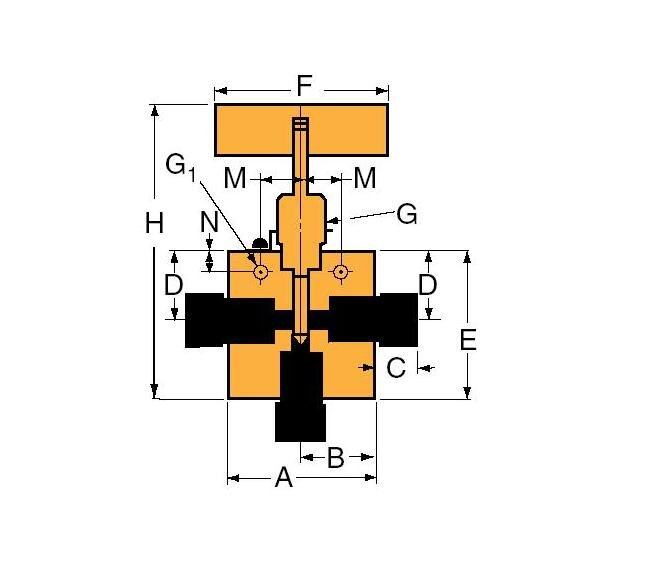

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.81 in | 71.37 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.44 in | 138.18 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.14
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
