Petersen 148-3 Series 1" Diameter Remote Placement Expander Plug
Petersen 148-3 Series 1" Diameter Remote Placement Expander Plug
SKU:HIG-fe5202
Secure and reliable 1" Diameter Remote Placement Expander Plug for pipeline testing and blocking. Nitrile rubber seal included.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Petersen 148-3 Series 1" Diameter Remote Placement Expander Plug
$34.99
Quantity: 1
Claim Your Seller Account
Petersen 148-3 Series 1" Diameter Remote Placement Expander Plug
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 148-3 Series 1" Diameter Remote Placement Expander Plug is designed for secure pipeline blocking, leakage testing, and regulator tests. Featuring a Nitrile rubber seal, this plug offers easy installation using specific wrench instructions, ensuring a snug fit without damage risks. Safety is paramount with a mechanical plug warning emphasizing adherence to maximum pressure guidelines to prevent accidents. Ideal for government and institutional use, this plug prioritizes reliability and efficiency in critical gas infrastructure applications.

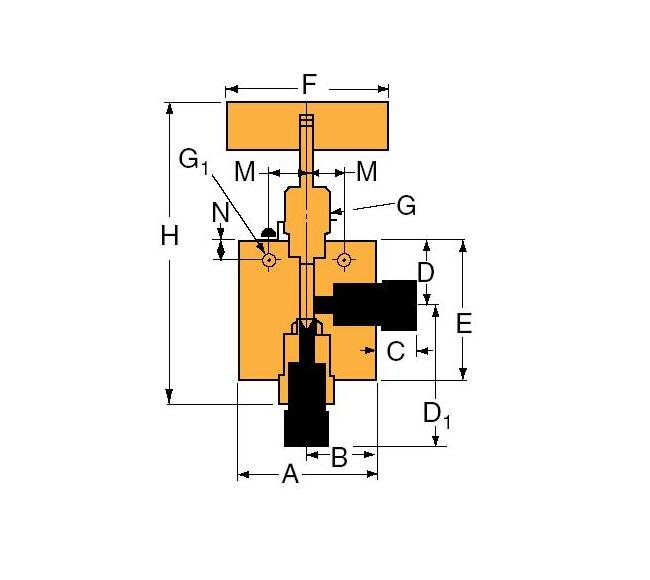

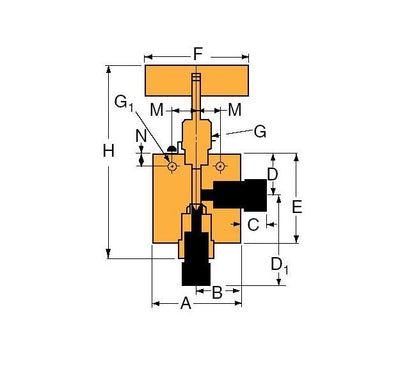

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
2.62 in | 66.55 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.45 in | 163.83 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
