Petersen 148-3 Series 12-Inch Length Wrench
Petersen 148-3 Series 12-Inch Length Wrench
SKU:HIG-b25ffa
Precision Petersen wrench for secure installation and removal of 148-3 Series Remote Placement Expander Plugs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen 148-3 Series 12-Inch Length Wrench
$29.99
Quantity: 1
Claim Your Seller Account
Petersen 148-3 Series 12-Inch Length Wrench
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 148-3 Series 12-Inch Length Wrench is a precision tool designed for use with 148-3 Series Remote Placement Expander Plugs. With a length of 12 inches (305 mm) and a durable build by Petersen®, this wrench ensures secure installation and removal of plugs. Its installation and removal instructions guarantee ease of use while preventing damage. The wrench features a mechanical plug warning to promote safe usage, making it an essential tool for pipe maintenance and repair in various industries.

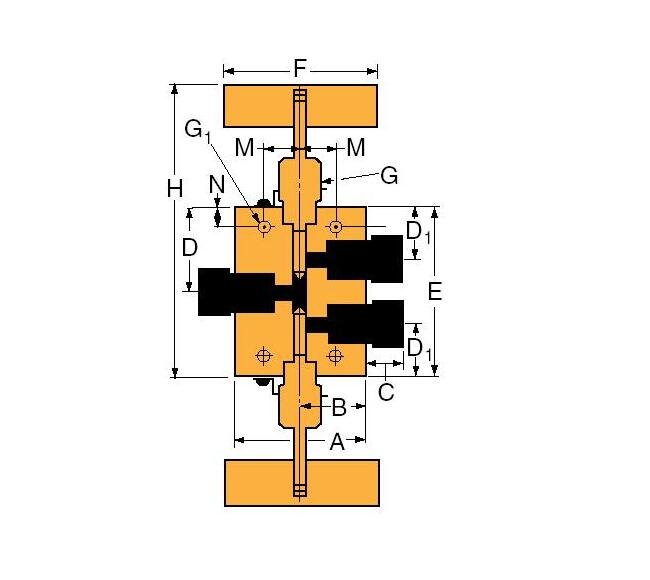

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.53 in | 38.86 mm
Specifications E Height
3.06 in | 77.72 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.68 in | 144.27 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
