Petersen 148-3 Series 24 Inch Wrench
Petersen 148-3 Series 24 Inch Wrench
SKU:HIG-df4936
The Petersen 148-3 Series 24 Inch Wrench is a durable and user-friendly tool designed for use with 148-3 Series Remote Placement Expander Plugs. Ideal for secure plug installation and removal.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Petersen 148-3 Series 24 Inch Wrench
$39.99
Quantity: 1
Claim Your Seller Account
Petersen 148-3 Series 24 Inch Wrench
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 148-3 Series 24 Inch Wrench is a versatile tool designed for use with 148-3 Series Remote Placement Expander Plugs. With a length of 24 inches (610 mm), this wrench offers precise control and leverage during installation and removal procedures. Featuring a durable construction by Petersen®, this wrench is built to withstand challenging industrial conditions. Its user-friendly design allows for easy maneuvering and secure engagement with the expander plugs. Additionally, the wrench comes with detailed installation and removal instructions to ensure proper usage and prevent damage. Ideal for maintenance tasks requiring reliable performance and efficient plug handling.
Ready to Grow Without Cash Flow Constraints?

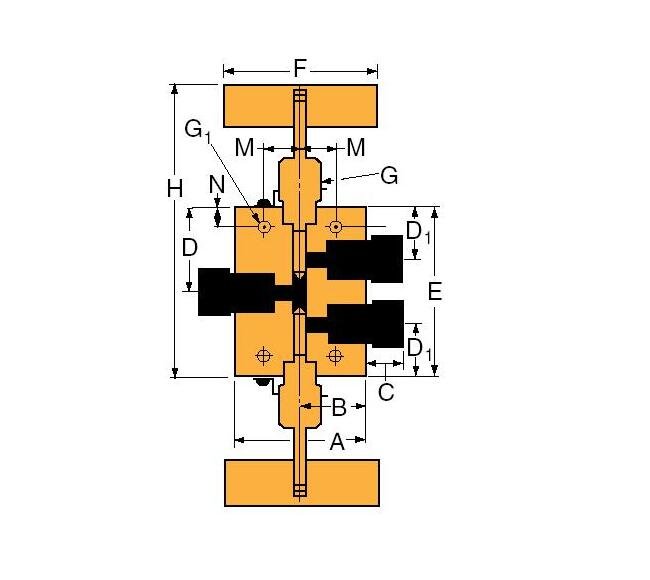

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.53 in | 38.86 mm
Specifications E Height
3.06 in | 77.72 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.68 in | 144.27 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
