The Petersen 148-3 Series 1.25 Inch Diameter Remote Placement Expander Plug is a reliable solution for pipeline testing and security. Designed to block tampering, prevent gas theft, and test for leaks, this expander plug features a durable Nitrile rubber seal. With easy installation and removal instructions, this plug ensures a secure fit without damaging the pipeline or plug. Remember, safety is paramount - always consider the pipe's capacity and conditions when conducting tests or blocking pipelines.
Product Specifications

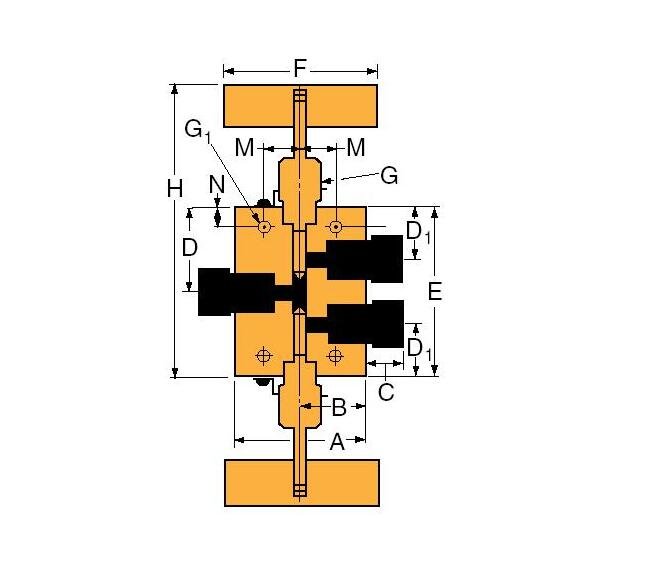

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
3.25 in | 82.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.87 in | 149.1 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.23
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
