Petersen 149-1 Series 1.5" Hand Tightening Aluminum Body Test Plug
Petersen 149-1 Series 1.5" Hand Tightening Aluminum Body Test Plug
SKU:HIG-cb4ffa
Efficiently test and seal pipes with Petersen 1.5" Hand-Tightening Aluminum Test Plug. Max pressure 25 psig, by-pass 3/8".
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen 149-1 Series 1.5" Hand Tightening Aluminum Body Test Plug
$29.99
Quantity: 1
Claim Your Seller Account
Petersen 149-1 Series 1.5" Hand Tightening Aluminum Body Test Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ideal for testing or sealing pipes and fittings, the Petersen 149-1 Series Test Plug features a 1.5" nominal pipe diameter with a maximum pressure of 25 psig. With a flow-thru design and a by-pass size of 3/8", this plug offers ease of use and efficient functionality. The mechanical plug warning ensures safety precautions are followed, making it suitable for various applications where reliable pipe sealing is crucial.

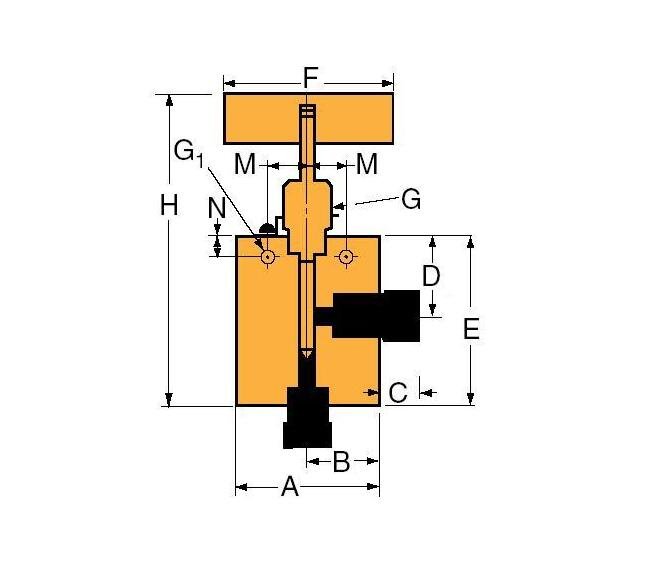

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.38 in | 60.45 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.00 in | 127.00 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.08
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
