The Petersen 149-1 Series 12" Hand Tightening Aluminum Test Plug is a robust solution for sealing pipes with a nominal diameter of 12 inches (304mm). Featuring a lever-type handle for easy expansion of the molded rubber sealing ring, this plug allows for convenient filling or draining without removal. With a by-pass size of 3/4 inch and a sturdy aluminum body, this plug ensures secure sealing and pressure retention. The hollow stems add versatility to the plug's functionality, making it an ideal choice for both testing and maintenance tasks in industrial applications.
Product Specifications

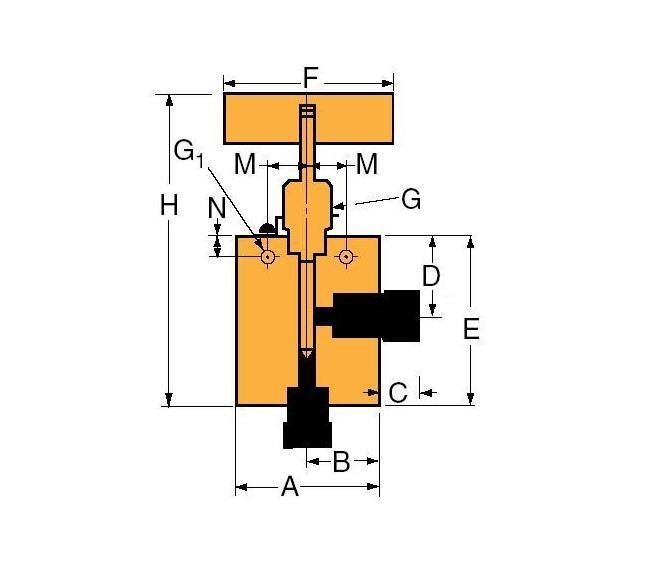

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.25 in | 133.35 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.09
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
