Petersen 149-1 Series 2" Aluminum Hand Tightening Test Plug
Petersen 149-1 Series 2" Aluminum Hand Tightening Test Plug
SKU:HIG-3880ed
Versatile 2" aluminum test plug for efficient pipe testing and sealing
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen 149-1 Series 2" Aluminum Hand Tightening Test Plug
$29.99
Quantity: 1
Claim Your Seller Account
Petersen 149-1 Series 2" Aluminum Hand Tightening Test Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 149-1 Series 2 Inch Nominal Pipe Diameter Hand Tightening Aluminum Body Test Plug is designed for testing or sealing pipes and fittings ranging from 1.8 inches to 2.25 inches in diameter. Featuring a maximum pipe pressure of 25 psig and a maximum head pressure of 57 ft, this plug ensures a secure seal with its short, hollow stems for easy turning and efficient filling or draining without the need for removal. With a total force of 412 and sturdy construction, it meets stringent standards for safety and performance.

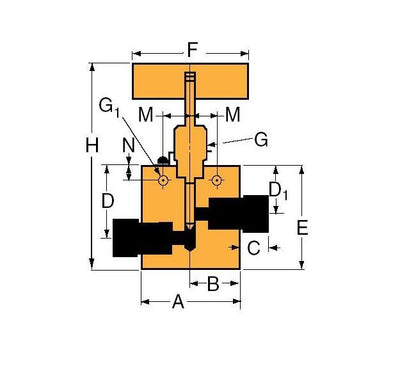

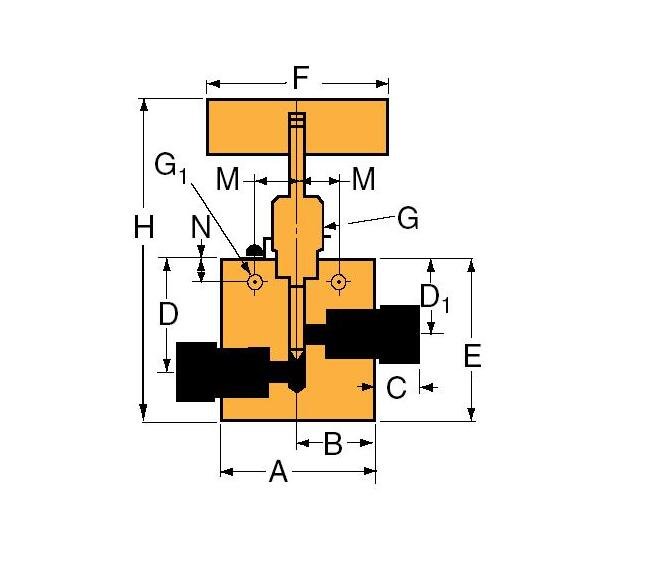

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C40
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
2.50 in | 63.50 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.109 in | 2.77 mm
Specifications Outside Diameter Tube
9/16 in | 14.3 mm
Specifications Pressure Rating At Room Temperature
40000 psi | 2760 bar
Specifications Rated Cv
0.28
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R40VM9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
