Petersen 149-1 Series 6 Inch Aluminum Test Plug
Petersen 149-1 Series 6 Inch Aluminum Test Plug
SKU:HIG-6ded3e
Efficiently test and seal pipes with the Petersen 149-1 Series 6 Inch Aluminum Test Plug. Easy to use, durable, and compliant with industry standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Petersen 149-1 Series 6 Inch Aluminum Test Plug
$39.99
Quantity: 1
Claim Your Seller Account
Petersen 149-1 Series 6 Inch Aluminum Test Plug
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 149-1 Series 6 Inch Nominal Pipe Diameter Hand Tightening Aluminum Body Test Plug is a reliable solution for testing or sealing pipes and fittings. With a maximum pipe pressure of 10 psig and a total force of 560, this plug features a short, hollow stem for easy turning in pipes and allows filling or draining without plug removal. It meets stringent industry standards, ensuring optimal performance and safety for both consumer and institutional applications.
Product Specifications

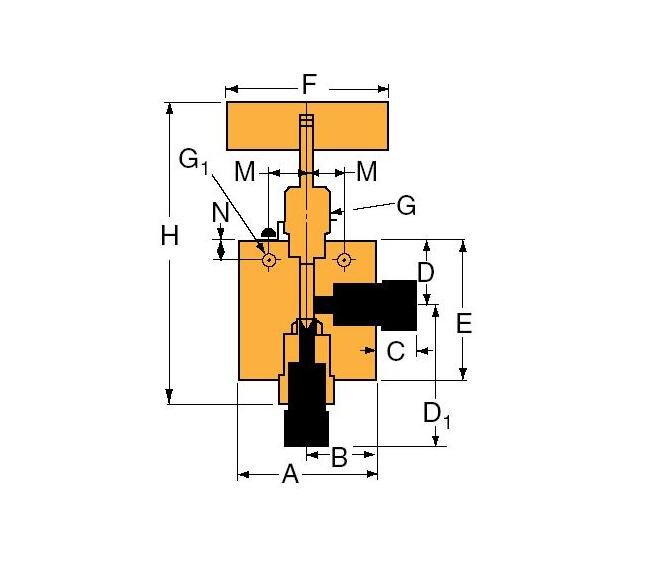

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D1 Height
2.06 in | 52.32 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.38 in | 60.45 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.8 in | 147.32 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.12
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
