Petersen 151 Series 0.13in High Lift Flange Weld Test Plug
Petersen 151 Series 0.13in High Lift Flange Weld Test Plug
SKU:HIG-802780
Efficient, durable test plug for precise weld testing & monitoring downstream conditions with minimal water usage.
Regular price
$149.00
Regular price
Sale price
$149.00
Unit price
per
Initiate Order
Petersen 151 Series 0.13in High Lift Flange Weld Test Plug
$149.00
Quantity: 1
Claim Your Seller Account
Petersen 151 Series 0.13in High Lift Flange Weld Test Plug
$149.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 151 Series High Lift Flange Weld Test Plug is a state-of-the-art solution for steam, purge, weld, and testing operations. Featuring a 'High Lift' seal design for increased seal to pipe clearance and higher seal expansion, this plug easily passes over weld penetrations, eliminating the need for grinding. With features like segmented compression tube for adjustable seal installation depth, low water requirements to reduce waste, and rugged construction, this plug offers fast, easy installation, improved seal-to-pipe clearance, and minimal environmental impact. Compliant with ANSI B16.5 requirements, this tool enhances efficiency and productivity in weld joint testing without the need for blind flanging or vacuum trucks.
Product Specifications

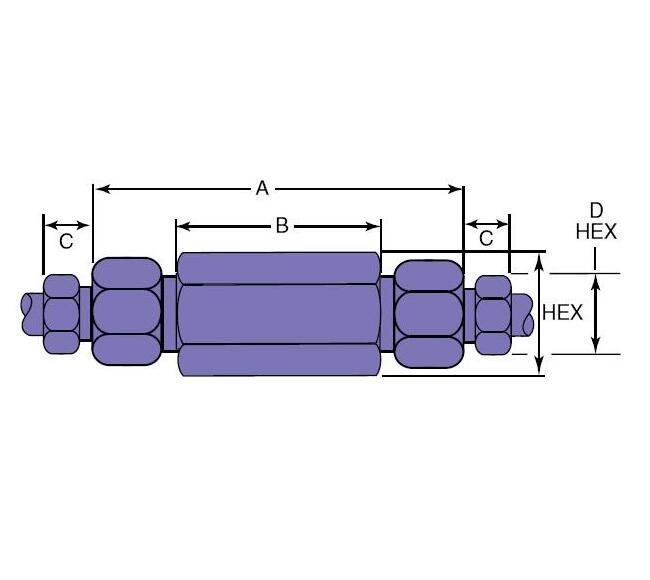

Specifications A Length
2.94 in | 75.56 mm
Specifications B Length
1.68 in | 42.67 mm
Specifications Connection Size And Type
SW250
Specifications C Length
0.44 in | 11.17 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Effective Filter Element Area
0.15 in² | 96.77 mm²
Specifications Hex
0.81 in | 20.57 mm
Specifications Micron Size
5/10
Specifications Orifice
0.125 in | 3.18 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
