Petersen 151 Series High Lift Flange Weld Test Plug
Petersen 151 Series High Lift Flange Weld Test Plug
SKU:HIG-e02854
Innovative Petersen 151 Series High Lift Flange Weld Test Plug for efficient weld testing & monitoring in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Petersen 151 Series High Lift Flange Weld Test Plug
$129.99
Quantity: 1
Claim Your Seller Account
Petersen 151 Series High Lift Flange Weld Test Plug
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 151 Series 0.07 Inch High Lift Flange Weld Test Plug is designed with a cutting-edge 'High Lift' seal for superior seal to pipe clearance and maximum seal expansion, effortlessly passing over weld penetration without the need for grinding. Ideal for steam, sniff, purge, welding, and testing applications, this plug reduces downtime delays and waste disposal problems associated with traditional flange-to-pipe weld testing. With features like segmented compression tube for seal depth adjustment, fast installation, and rugged construction, this plug ensures efficient monitoring, isolation, purging, welding, and hydro testing of weld joints to ANSI B16.5 standards, saving time, money, and resources with each use.

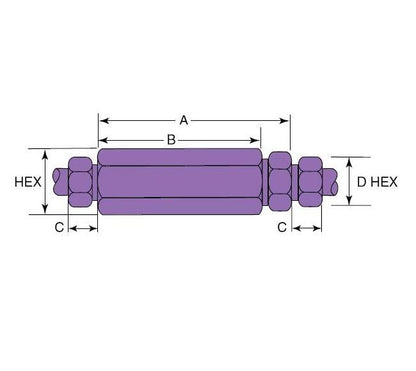

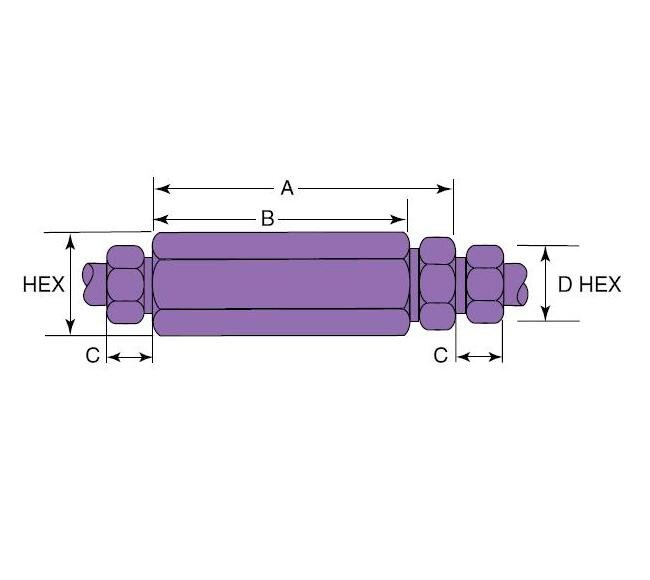

Product Specifications
Specifications A Length
3.56 in | 90.42 mm
Specifications B Length
3.00 in | 76.20 mm
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications Fits Connection Type
SW375
Specifications Hex
1.00 in | 25.40 mm
Specifications Orifice
0.250 in | 6.35 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
1.70
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
