The Petersen 151 Series 0.07 inch High Lift Flange Weld Test Plug is a revolutionary tool designed for steam, sniffing, purging, welding, and testing operations. Its 'High Lift' seal design allows for greater seal to pipe clearance and higher seal expansion, eliminating the need for grinding deep root penetrations. This plug enables streamlined downstream monitoring, weld area isolation, welding, and hydro testing, all complying with ANSI B16.5 requirements. With features like segmented compression tube for seal depth adjustment, low water requirements, rugged construction, and versatility in accommodating different pipe schedules, this plug ensures faster pipe repairs with minimal environmental impact.

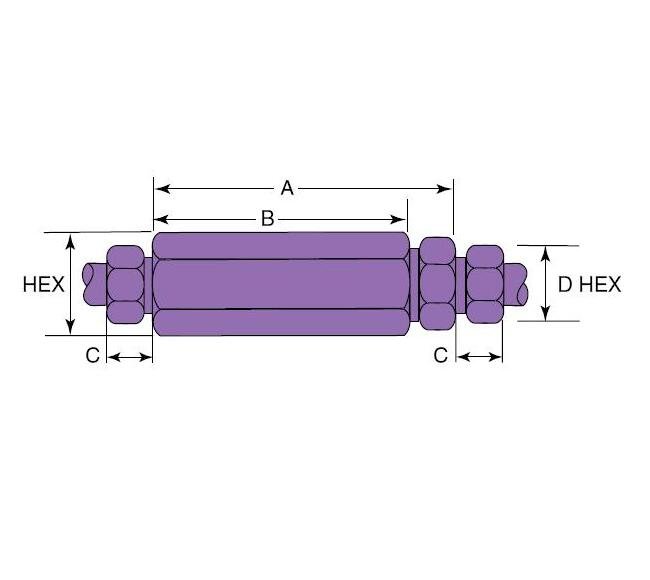

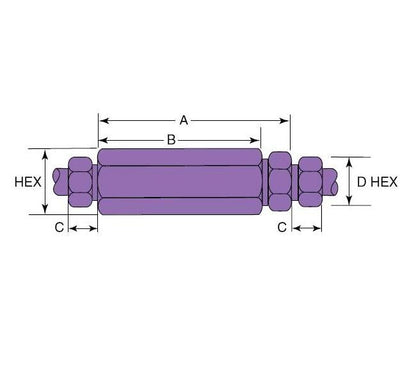

Product Specifications
Specifications A Length
2.25 in | 57.15 mm
Specifications B Length
1.88 in | 47.75 mm
Specifications C Length
0.31 in | 7.87 mm
Specifications D Hex
0.5 in | 12.70 mm
Specifications Fits Connection Type
W125
Specifications Hex
0.63 in | 15.88 mm
Specifications Orifice
0.094 in | 2.39 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
0.012
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
