Petersen 151 Series High Lift Flange Weld Test Plug
Petersen 151 Series High Lift Flange Weld Test Plug
SKU:HIG-f076fa
Revolutionize your weld testing with Petersen's High Lift Flange Weld Test Plug. Ensure compliance, cut costs, and save time!
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Petersen 151 Series High Lift Flange Weld Test Plug
$149.99
Quantity: 1
Claim Your Seller Account
Petersen 151 Series High Lift Flange Weld Test Plug
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 151 Series High Lift Flange Weld Test Plug is a game-changer for weld testing procedures. Designed with a cutting-edge 'High Lift' seal, this plug offers superior seal to pipe clearance and higher seal expansion, effortlessly passing over weld penetration without the need for grinding. It minimizes downtime, reduces waste disposal concerns, and ensures compliance with ANSI B16.5 requirements. With features like fast installation, adjustable seal depth, and rugged construction, this plug delivers cost-effective, efficient, and environmentally conscious testing solutions for institutional and government procurement needs.

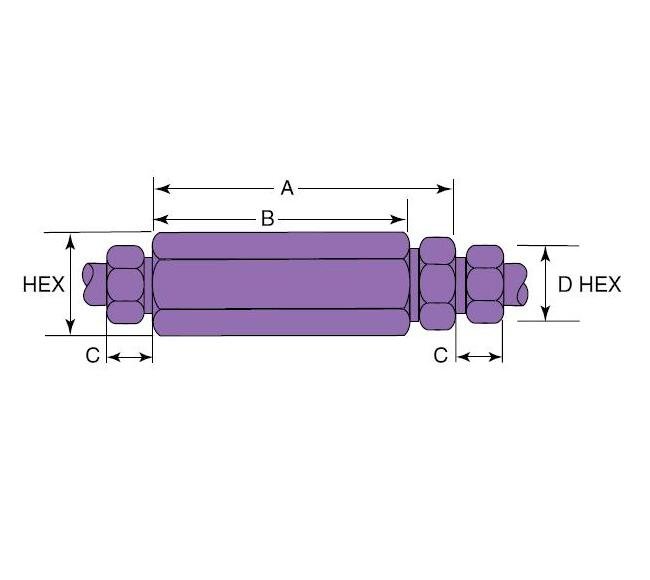

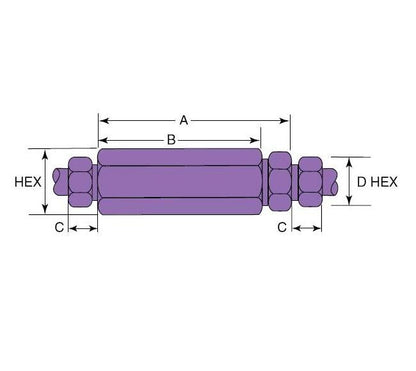

Product Specifications
Specifications A Length
3.56 in | 90.42 mm
Specifications B Length
3.00 in | 76.20 mm
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications Fits Connection Type
SW375
Specifications Hex
1.00 in | 25.40 mm
Specifications Orifice
0.250 in | 6.35 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
0.104
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
