The Petersen 151 Series 0.13 Inch High Lift Flange Weld Test Plug offers a revolutionary 'High Lift' seal design that provides greater seal-to-pipe clearance and enhanced seal expansion. This plug is designed to effortlessly pass over weld penetrations, eliminating the need for grinding deep root penetrations. With its segmented compression tube for adjustable seal installation depth, faster pipe repairs, and improved seal clearance, this plug ensures fast, easy installation and testing while reducing downtime and environmental impact. It meets ANSI B16.5 hydro test requirements and requires minimal water, making it a cost-effective and eco-friendly solution for weld testing and pipe isolation.

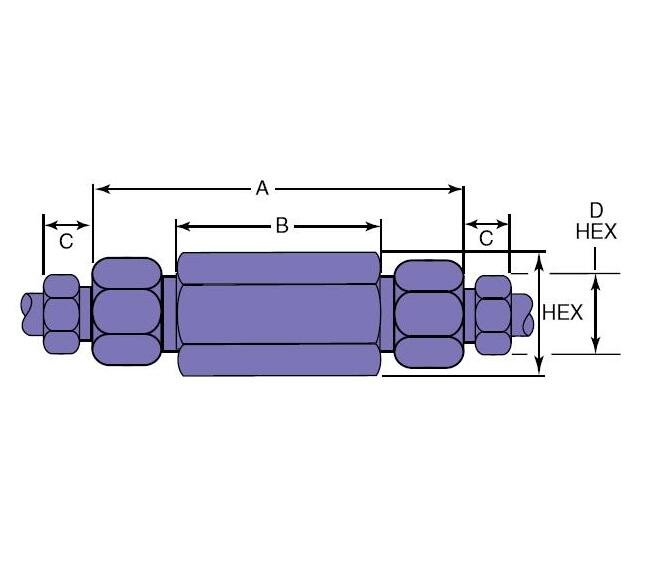

Product Specifications
Specifications A Length
2.31 in | 58.67 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Size And Type
W125
Specifications C Length
0.31 in | 7.87 mm
Specifications D Hex
0.5 in | 12.70 mm
Specifications Effective Filter Element Area
0.06 in² | 38.70 mm²
Specifications Hex
0.62 in | 15.74 mm
Specifications Micron Size
5/10
Specifications Orifice
0.094 in | 2.39 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
