Petersen 154 Series 10 Inch Low Pressure Gas Plug
Petersen 154 Series 10 Inch Low Pressure Gas Plug
SKU:COP-43a041
High-quality 154 Series 10" Low Pressure Gas Plug for reliable pipeline testing and maintenance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen 154 Series 10 Inch Low Pressure Gas Plug
$89.99
Quantity: 1
Claim Your Seller Account
Petersen 154 Series 10 Inch Low Pressure Gas Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 154 Series 10 Inch Low Pressure Gas Plug features a high-quality nitrile bladder encased in 100% Polyester fabric for reliable performance. Designed for a snug fit and effective shut-off, this plug includes an inflation valve for easy use. With a durable construction and maximum inflation pressure of 10 psig, this plug is ideal for pipeline testing and maintenance in industrial settings. Please note that customization may be required for perfect seal for pipeline testing.
Product Specifications

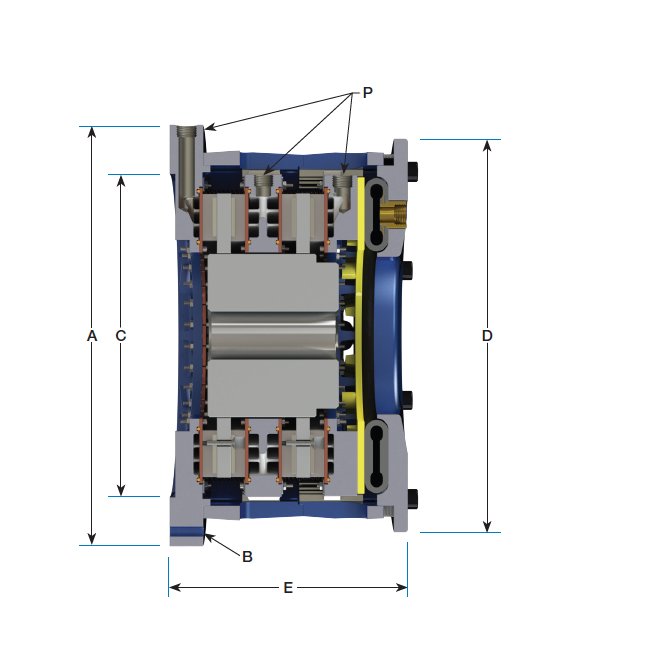

Dimensions Diameter B
21/32 in | 16.7 mm
Dimensions Dimension A
18.750 in | 476.25 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension C
14.375 in | 365.13 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
17-1/2 in | 444.5 mm
Dimensions Dimension E
14-1/4 in | 362.0 mm
Dimensions Hole Circle B
17.50 in | 444.5 mm
Dimensions Maximum Bore Range
4.50 in | 114.3 mm
Dimensions Minimum Bore Range
2.13 in | 54.0 mm
Dimensions Quantity
6
Dimensions Thread Size P
1/2
Dimensions Thread Type
National Pipe Thread (NPT)
Features Features
O-ring water jacket design for same-day field serviceNo outboard support requiredStandardized mounting for OEM applications, rebuilds, or retrofitsThe actuator is naturally corrosion resistantLegacy service parts available for additional sizes
Note Note
Contact WPT® Power for final selection, product flexibility, application guidance and approval. Certified prints available on request. Dimensions and Specifications are considered as reference only and subject to change.
Specifications High Coefficient Pneumatic Torque Rating At 100 P
74700 lbf·in | 8450 N·m
Specifications Hub And Drive Plate Dp Inertia
52 lb·ft² | 2.2 kg·m²
Specifications Hub And Drive Plate Dp Weight
163 lb | 74 kg
Specifications Maximum Free Wheel Speed
2740 rpm
Specifications Maximum Slip Speed
1820 rpm
Specifications Medium Coefficient Pneumatic Torque Rating At 100
48400 lbf·in | 5460 N·m
Specifications Minimum Freshwater Flow
23 gpm | 84 L/min
Specifications Note For Heat Dissipation Capacity And Minimum Fr
Rated heat dissipation requires a freshwater flowrate of 1 gpm for every 10 hp (one liter per minute for every 2 kW) and are based upon a 50°F (28°C) temperature rise between the inlet and outlet. The outlet water temperature should not exceed 170°F (77°C). Maximum inlet water pressure is 60 psi (4.1 bar). Ethylene Glycol is the recommended coolant additive. At 50% concentration in water, the required flowrate is 1.5 times the freshwater flowrate, due to the reduced specific heat of the solution.
Specifications Note For Pneumatic Torque Rating At 100 Pound Per
Pneumatic Max Actuator Pressure: 130 psi (9 bar) All sizesTorque is directly proportional to the actuator pressure appliedLow Coefficient and Extra-High Coefficient Friction Material offerings are available.
Specifications Parallel Piping Heat Dissipation Capacity
225 hp | 168 kW
Specifications Series Piping Heat Dissipation Capacity
150 hp | 112 kW
Specifications Total Weight
510 lb | 230 kg
