Petersen 154 Series 20-Inch Low Pressure Gas Plug

Petersen 154 Series 20-Inch Low Pressure Gas Plug

STE-dff82a

High-quality 20-Inch Low Pressure Gas Plug for secure pipeline testing and maintenance.

$239.99
$239.99
Sale

Initiate Order

Petersen 154 Series 20-Inch Low Pressure Gas Plug

Petersen 154 Series 20-Inch Low Pressure Gas Plug

$239.99

Quantity: 1

Claim Your Seller Account

Petersen 154 Series 20-Inch Low Pressure Gas Plug

Petersen 154 Series 20-Inch Low Pressure Gas Plug

$239.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen 154 Series 20-Inch Low Pressure Gas Plug features a high-quality nitrile inner bladder encased in durable polyester fabric, ensuring a snug fit and reliable shut-off upon inflation. It comes with an inflation valve and can be customized with a pressure gauge for precise inflation. With a deflated diameter suitable for various pipeline sizes, this plug is designed to meet institutional standards for pipeline testing and maintenance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

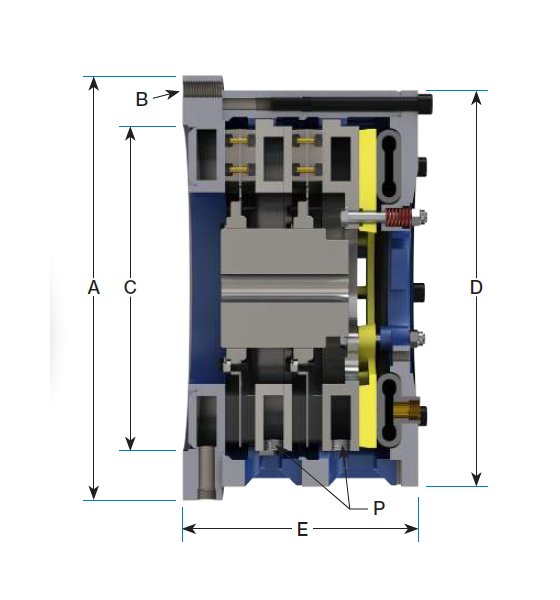

Dimensions Diameter B
21/32 in
Dimensions Diameter B Metric Mounting
18.0 mm
Dimensions Dimension A
23.250 in | 590.55 mm
Dimensions Dimension A Metric Mounting
590.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.08 mm | -0.000 mm
Dimensions Dimension C
18.250 in | 463.55 mm
Dimensions Dimension C Metric Mounting H7
470.00 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.000 mm
Dimensions Dimension D
22 in | 558.8 mm
Dimensions Dimension E
11-3/4 in | 298.5 mm
Dimensions Hole Circle B
22.00 in | 558.8 mm
Dimensions Hole Circle B Metric Mounting
560.0 mm
Dimensions Imperial Mounting Coolant Ports P
1/2
Dimensions Imperial Mounting Thread Type
National Pipe Thread (NPT)
Dimensions Metric Mounting Coolant Ports P
1/2
Dimensions Quantity
10
Dimensions Quantity Metric Mounting
10
Dimensions Thread Type
British Standard Pipe Taper Thread (BSPT)
Features Features
High cycle lifePredictable preventative maintenanceLow-inertia drive plate configurationDurable steel water jacket designStandardized mounting for OEM applications, rebuilds, or retrofitsMaximum heat transferLow-inertia drive plate design
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Heat Dissipation Capacity
88 hp | 65.6 kW
Specifications Lining Area
230 in² | 1500 cm²
Specifications Maximum Bore Range
4.10 in | 104.1 mm
Specifications Maximum Speed Hub And Drive Plate
1910 rpm
Specifications Maximum Speed Slip
1280 rpm
Specifications Minimum Bore Range
2.13 in | 54.1 mm
Specifications Minimum Water Flow
13 gal/min | 50 L/min
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
101000 lbf·in | 11400 N·m
Weight And Inertia Hub And Drive Plate Dp Inertia
22 lb·ft² | 0.94 kg·m²
Weight And Inertia Hub And Drive Plate Dp Weight
120 lb | 56 kg
Weight And Inertia Total Weight
590 lb | 270 kg
