Petersen 154 Series 24'' Low Pressure Gas Plug
Petersen 154 Series 24'' Low Pressure Gas Plug
SKU:COP-4d00ba
Reliable Petersen 154 Series 24'' Low Pressure Gas Plug for secure shut-off and snug fit. Ideal for low pressure gas applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Petersen 154 Series 24'' Low Pressure Gas Plug
$249.99
Quantity: 1
Claim Your Seller Account
Petersen 154 Series 24'' Low Pressure Gas Plug
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 154 Series 24'' Low Pressure Gas Plug is designed with a high quality nitrile inner bladder encased in a durable 100% Polyester fabric cover, ensuring a snug fit and reliable shut-off when inflated. This plug features an inflation valve for ease of use and can be customized for pipeline testing. With a maximum inflation pressure of 3 psig and a maximum test head of 0.5 ft, this plug is ideal for low pressure gas applications. Ensure pipeline safety and compliance with this expertly crafted Petersen gas plug.
Product Specifications

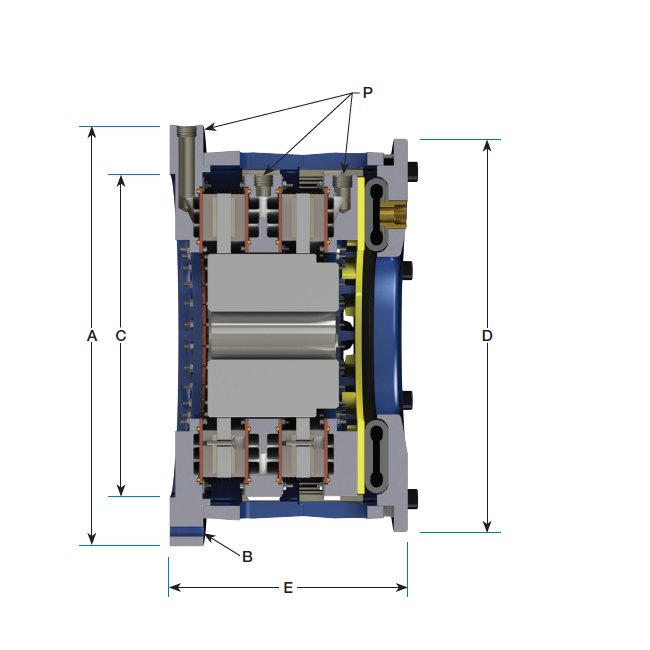

Dimensions Diameter B
21/32 in | 16.7 mm
Dimensions Dimension A
30.000 in | 762.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension C
24.375 in | 619.13 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
29 in | 736.6 mm
Dimensions Dimension E
13-5/8 in | 347.3 mm
Dimensions Hole Circle B
28.75 in | 730.3 mm
Dimensions Maximum Bore Range
8.00 in | 203.2 mm
Dimensions Minimum Bore Range
2.13 in | 54.0 mm
Dimensions Quantity
10
Dimensions Thread Size P
3/4
Dimensions Thread Type
National Pipe Thread (NPT)
Features Features
O-ring water jacket design for same-day field serviceNo outboard support requiredStandardized mounting for OEM applications, rebuilds, or retrofitsThe actuator is naturally corrosion resistantLegacy service parts available for additional sizes
Note Note
Contact WPT® Power for final selection, product flexibility, application guidance and approval. Certified prints available on request. Dimensions and Specifications are considered as reference only and subject to change.
Specifications High Coefficient Pneumatic Torque Rating At 100 P
245000 lbf·in | 27600 N·m
Specifications Hub And Drive Plate Dp Inertia
760 lb·ft² | 32 kg·m²
Specifications Hub And Drive Plate Dp Weight
760 lb | 350 kg
Specifications Maximum Free Wheel Speed
1610 rpm
Specifications Maximum Slip Speed
1070 rpm
Specifications Medium Coefficient Pneumatic Torque Rating At 100
158000 lbf·in | 17900 N·m
Specifications Minimum Freshwater Flow
58 gpm | 212 L/min
Specifications Note For Heat Dissipation Capacity And Minimum Fr
Rated heat dissipation requires a freshwater flowrate of 1 gpm for every 10 hp (one liter per minute for every 2 kW) and are based upon a 50°F (28°C) temperature rise between the inlet and outlet. The outlet water temperature should not exceed 170°F (77°C). Maximum inlet water pressure is 60 psi (4.1 bar). Ethylene Glycol is the recommended coolant additive. At 50% concentration in water, the required flowrate is 1.5 times the freshwater flowrate, due to the reduced specific heat of the solution.
Specifications Note For Pneumatic Torque Rating At 100 Pound Per
Pneumatic Max Actuator Pressure: 130 psi (9 bar) All sizesTorque is directly proportional to the actuator pressure appliedLow Coefficient and Extra-High Coefficient Friction Material offerings are available.
Specifications Parallel Piping Heat Dissipation Capacity
570 hp | 425 kW
Specifications Series Piping Heat Dissipation Capacity
380 hp | 283 kW
Specifications Total Weight
1200 lb | 550 kg
