Petersen 161-0 Series 36x36 High Pressure Flat Form Bag
Petersen 161-0 Series 36x36 High Pressure Flat Form Bag
SKU:HIG-31bfd2
Heavy-duty Petersen 161-0 36x36 High Pressure Flat Form Bag with 35-ton lift capacity, Kevlar® reinforced for safety and durability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Petersen 161-0 Series 36x36 High Pressure Flat Form Bag
$799.99
Quantity: 1
Claim Your Seller Account
Petersen 161-0 Series 36x36 High Pressure Flat Form Bag
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 161-0 Series 36x36 High Pressure Flat Form Bag is a heavy-duty pneumatic air bag reinforced with Kevlar® cord for efficient heavy lifting in industrial, emergency rescue, and HAZMAT management scenarios. With a lift capacity of 35 tons and a safe stacking limit of three bags, these bags ensure secure lifting operations with a maximum 8-inch lift height. The durable NR-SBR rubber compound construction and Kevlar® reinforcement guarantee longevity and safety. These bags are designed to eliminate the complexities of height/weight calculations and maintain a flat profile to prevent rolling or shifting. Operating temperatures ranging from -40°F to 130°F make these bags suitable for various environments.

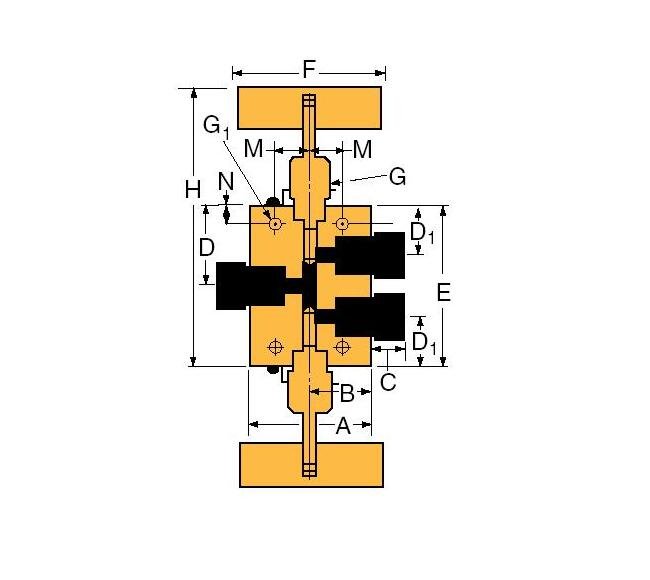

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.68 in | 42.67 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.94 in | 150.88 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
