Petersen 161-0 Series High Pressure Flat Form Bag - 24 x 24 Inch
Petersen 161-0 Series High Pressure Flat Form Bag - 24 x 24 Inch
SKU:HIG-918bf1
Precision lifting with Petersen High Pressure Flat Form Bag. Kevlar® reinforced for industrial durability.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Petersen 161-0 Series High Pressure Flat Form Bag - 24 x 24 Inch
$249.99
Quantity: 1
Claim Your Seller Account
Petersen 161-0 Series High Pressure Flat Form Bag - 24 x 24 Inch
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 161-0 Series High Pressure Flat Form Bag is a heavy-duty lifting solution ideal for industrial, emergency rescue, and HAZMAT scenarios. Reinforced with Kevlar®, these bags allow for precise lifting of up to 12 tons at a lift height of 6.7 inches. Their flat form design simplifies stacking and ensures stability during operation. With an operating temperature range of -40 to 130 °F and robust NR-SBR rubber construction, these bags offer longevity and reliability for your lifting needs.
Product Specifications

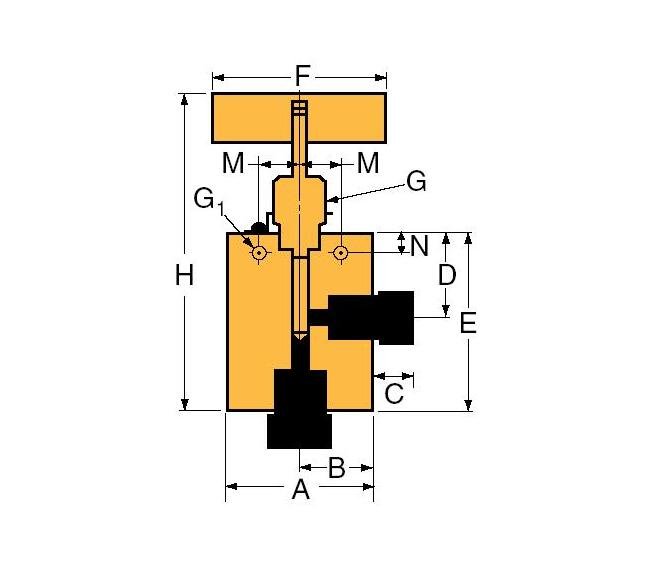

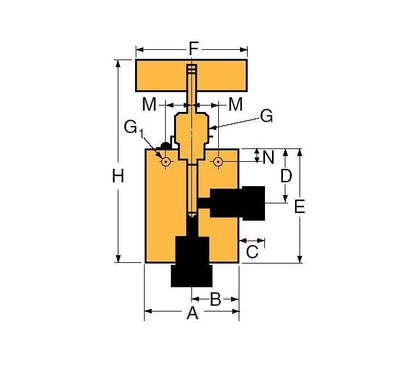

Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.45 in | 163.83 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
