Petersen 161-5 Series Heavy Duty Lift Bag 36 x 36 in
Petersen 161-5 Series Heavy Duty Lift Bag 36 x 36 in
SKU:HIG-af4cf8
Enhance lifting operations with Petersen's high-pressure lift bag - superior capacity, durability, and safety with Aramid reinforced rubber. -40°F to 130°F operating range.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Petersen 161-5 Series Heavy Duty Lift Bag 36 x 36 in
$129.99
Quantity: 1
Claim Your Seller Account
Petersen 161-5 Series Heavy Duty Lift Bag 36 x 36 in
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 161-5 Series 36 x 36 Inch High Pressure Heavy Duty Lift Bag offers industry-leading performance with up to 25% higher lift capacity than conventional bags of the same size. With an inflation pressure of 145 psi, it provides exceptional durability and reliability. Featuring a unique rib design for secure stacking, a minimum safety factor of 4, and a burst pressure exceeding 580 psi, these lift bags are ideal for heavy-duty lifting operations. Made of Aramid reinforced rubber compound, they are compatible with conventional 116 PSI inflation control systems and come with a 5-year limited warranty. Operating temperature ranges from -40°F to 130°F.
Product Specifications

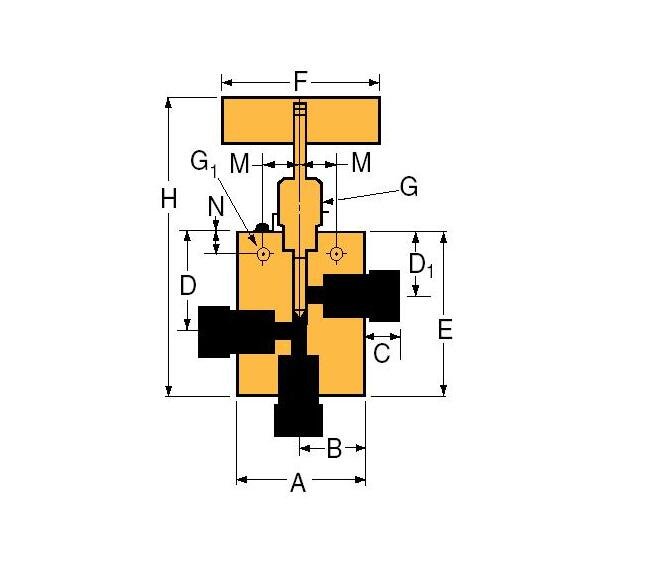

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.94 in | 150.88 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
