Petersen 161-5 Series High Pressure Heavy Duty Bag 24x24

Petersen 161-5 Series High Pressure Heavy Duty Bag 24x24

HIG-97bca9

Enhanced lift capacity with 25% higher inflation pressure, durable Aramid reinforced rubber construction, and secure stacking design. Ideal for heavy lifting applications.

$189.99
$189.99
Sale

Initiate Order

Petersen 161-5 Series High Pressure Heavy Duty Bag 24x24

Petersen 161-5 Series High Pressure Heavy Duty Bag 24x24

$189.99

Quantity: 1

Claim Your Seller Account

Petersen 161-5 Series High Pressure Heavy Duty Bag 24x24

Petersen 161-5 Series High Pressure Heavy Duty Bag 24x24

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen 161-5 Series High Pressure Heavy Duty Bag, sized at 24 x 24 inches, offers exceptional lifting capacity with 25% higher inflation pressure at 145 psi. Constructed from Aramid reinforced rubber compound, it ensures durability and reliability. The unique rib design facilitates secure stacking, and each bag has a minimum safety factor of 4, achieving a burst pressure of 580 psi. With compatibility for conventional 116 PSI inflation control systems and a 5-year warranty, this bag is a superior choice for heavy lifting applications in various industries.

Product Specifications

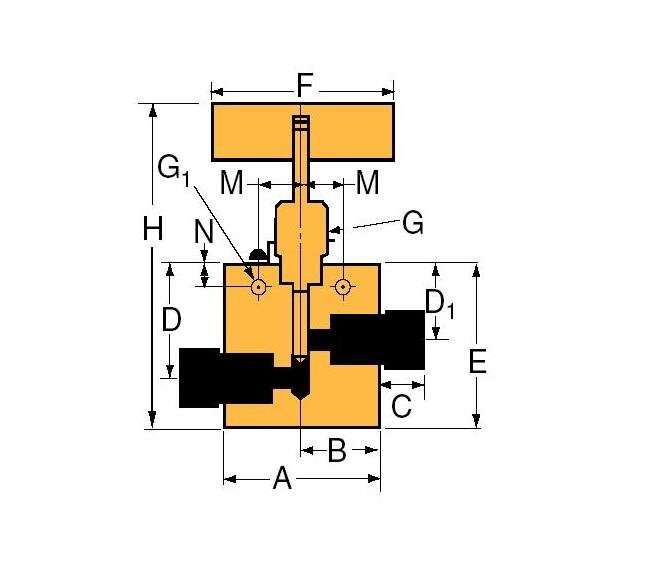

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.50 in | 114.30 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).† Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
