Petersen 161-5 Series High Pressure Heavy Duty Bag - 8x8 Inch
Petersen 161-5 Series High Pressure Heavy Duty Bag - 8x8 Inch
SKU:HIG-f88b94
Enhance lifting operations with Petersen 161-5 Series High Pressure Heavy Duty Bag! 25% higher lift capacity, 145 psi inflation pressure, and robust design for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen 161-5 Series High Pressure Heavy Duty Bag - 8x8 Inch
$89.99
Quantity: 1
Claim Your Seller Account
Petersen 161-5 Series High Pressure Heavy Duty Bag - 8x8 Inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 161-5 Series High Pressure Heavy Duty Bag, sized at 8x8 inches, offers a superior lift capacity up to 25% higher than conventional bags due to its inflation pressure of 145 psi. With a lightweight design, low profile, and special rib surface for secure stacking, these bags ensure safety with a minimum 4x safety factor and a burst pressure of 580 psi. Made of Aramid reinforced rubber compound, these bags are compatible with 116 PSI control systems. Operating temperature ranges from -40ºF to 130ºF.

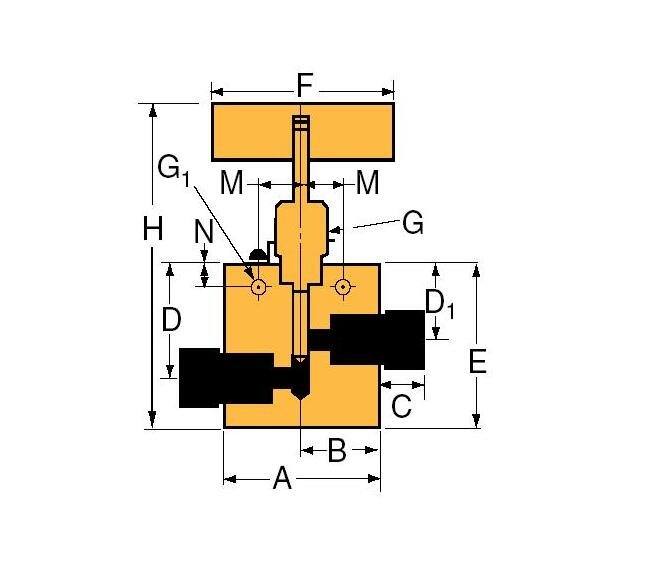

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW375
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.50 in | 114.30 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.95
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
