Petersen 910-4 Series 24" Hot Tap Pipe Sleeve with 8" Flange Outlet
Petersen 910-4 Series 24" Hot Tap Pipe Sleeve with 8" Flange Outlet
SKU:POW-4fe497
Reliable Petersen 910-4 Series Hot Tap Pipe Sleeve - Ideal for hot tap pipe plug insertion systems. Carbon steel construction with nitrile gasket for secure seal.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Petersen 910-4 Series 24" Hot Tap Pipe Sleeve with 8" Flange Outlet
$999.99
Quantity: 1
Claim Your Seller Account
Petersen 910-4 Series 24" Hot Tap Pipe Sleeve with 8" Flange Outlet
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 910-4 Series Hot Tap Pipe Sleeve is a reliable solution for hot tap pipe plug insertion systems. Constructed with carbon steel and AWWA C207 Class D flanges, this sleeve offers a secure and durable fit. The self-energizing nitrile gasket ensures a reliable seal with increasing line pressure. With its fusion-bonded Flexi-Coat epoxy finish and heavy welded steel sections, this sleeve is built to last and perform well in various pipe conditions. The design includes a concave wedge gasket for sealing and a flat-faced flange for easy valve compatibility.
Product Specifications
Bore Range Bore Range Adapter
14.00 in | 355.6 mm
Bore Range Bore Range Clutch
12.00 in | 304.8 mm

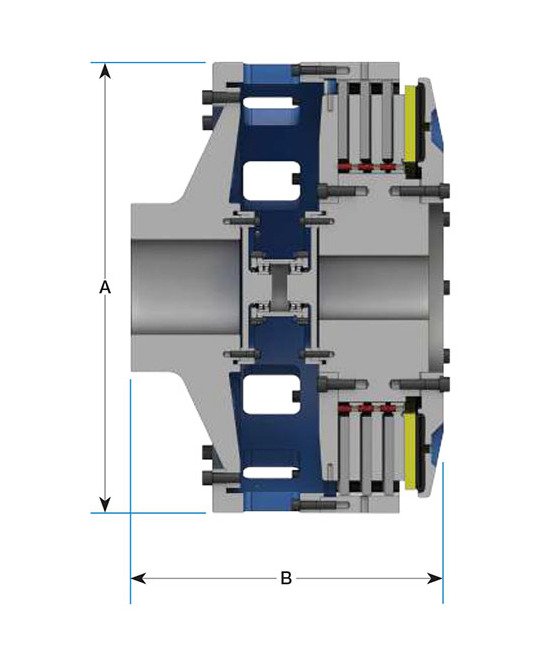

Dimensions Dimension A
56 in | 1422.4 mm
Dimensions Dimension B
43-9/16 in | 1108.0 mm
Features Features
Reduces peak power demand for high load startsDisc design provide more torque capacity and lining area than drum style productsSuitable for jogging and inchingAvailable with axial locking deviceQuick-change Driving adapters for serviceability
Maximum Speed Maximum Slip Speed
480 rpm
Maximum Speed Maximum Speed
650 rpm
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
4800 in² | 30900 cm²
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
2750000 lbf.in | 311000 N·m
Weight And Inertia Ring Fd And Qc Adapter Inertia
12700 lb·ft² | 533 kg·m²
Weight And Inertia Ring Fd And Qc Adapter Weight
4000 lb | 1810 kg
Weight And Inertia Total Inertia
20400 lb·ft² | 857 kg·m²
Weight And Inertia Total Weight
8200 lb | 3720 kg
