The Petersen 938-96 Series Deflection Gauge is a vital tool for testing flexible sewer pipes for out-of-roundness and deflection according to ASTM standards D3034 and F679. Constructed with durable zinc-plated steel, this gauge features a nine-arm design that ensures accurate testing while allowing debris to pass through easily. With an open design that conforms to mandrel sizing specifications, it guarantees optimal performance by verifying proper bedding and backfilling as per ASTM D2321. Available in a 15-inch fixed size, this gauge is designed to meet institutional procurement requirements and ensure compliance.

Product Specifications

Specifications Fits Connection Type

F312C150

Specifications Flow Area

0.033 inÂ² | 1.94 mmÂ²

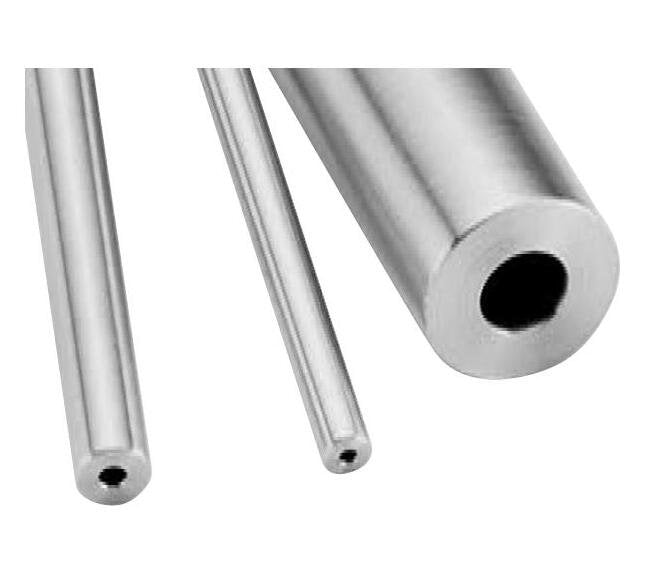

Specifications Inside Diameter Tube

0.062 in | 1.57 mm

Specifications Outside Diameter Tube

5/16 in | 7.94 mm

Specifications Toleranceoutside Diameter

.310/.306 in | 7.87/7.77 mm

Specifications Tube Materials

316SS

Specifications Wall Thickness Tube

0.125 in | 3.18 mm

Specifications Working Pressure At 200f 93c

150000 psi | 10341.97 bar

Specifications Working Pressure At 325 To 100f 198 To 378c

150000 psi | 10341.97 bar

Specifications Working Pressure At 400f 204c

144400 psi | 9955.87 bar

Specifications Working Pressure At 600f 316c

136350 psi | 9400.85 bar

Specifications Working Pressure At 800f 427c

126750 psi | 8738.97 bar
