Petersen 938-96 Series 18in Deflection Gauge

Name: Petersen 938-96 Series 18in Deflection Gauge
Brand: Parker / Autoclave Engineers
SKU: HIG-25d8df
Price: 299.99 USD
Availability: OutOfStock

SKU:HIG-25d8df

Ensure optimal sewer pipe performance with the Petersen 18in Deflection Gauge, meeting ASTM standards for accurate testing & durability.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Petersen 938-96 Series 18 Inch Fixed Size Steel Deflection Gauge is a precision tool used to test flexible sewer pipes for out-of-roundness or deflection, meeting ASTM specifications D3034 and F679. Its nine-arm design ensures accurate testing while allowing debris to pass through, preventing test failures due to hang-ups. Crafted from durable, zinc-plated steel, this gauge resists corrosion and conforms to mandrel sizing specifications. Ideal for ensuring proper bedding and backfilling of pipes per ASTM D2321, guaranteeing peak performance.

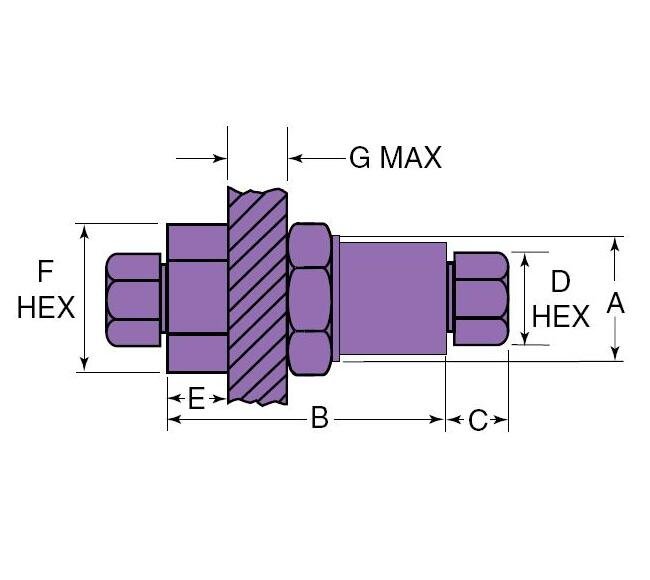

Product Specifications

Specifications A Panel Hole Drill Size

2.12 in | 53.85 mm

Specifications B Length

3.25 in | 82.55 mm

Specifications Connection Type

F312C150

Specifications C Length

0.52 in | 13.21 mm

Specifications D Hex

0.75 in | 19.05 mm

Specifications E Length

1.38 in | 35.05 mm

Specifications F Hex

2.00 in | 50.80 mm

Specifications G Thickness

0.38 in | 9.65 mm

Specifications Minimum Opening

0.094 in | 2.39 mm

Specifications Outside Diameter Tube

7.94 mm | 5/16 in

Specifications Pressure Rating

150000 psi | 10341.97 bar

Specifications Tubing Engagement Depth

1.18 in | 30.0 mm
